Product Details:
Payment & Shipping Terms:
|

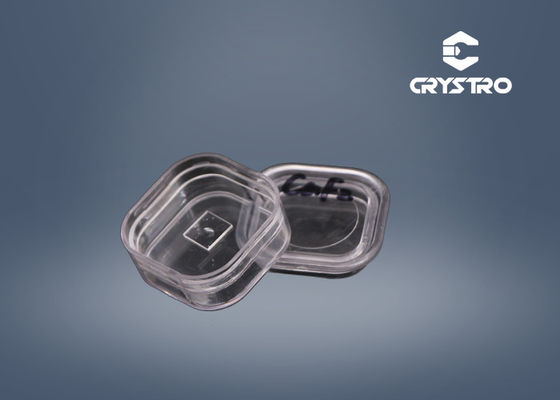

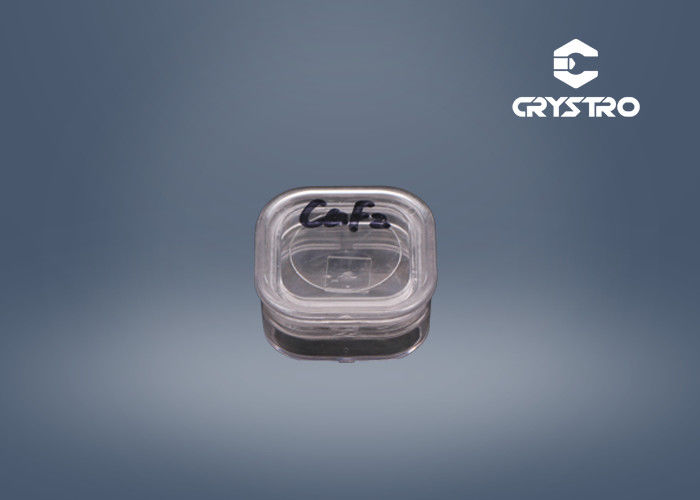

| Product Name: | CaF2 Crystal Substrate | Chemical Formula: | CaF2 |
|---|---|---|---|
| Orientation: | [100] [111] | Density: | 3.18 G/cm3 |
| Melting Point: | 1418 ℃ | Hardness: | 4 ( Mohn) |
| Crystal Structure: | Cubic | Appearance: | Transparent |
| Lattice Parameters: | A=5.462 Å | ||
| High Light: | CaF2 Single Crystal Substrate,Calcium Fluoride Single Crystal Substrate,CaF2 Calcium Fluoride |
||
Introduction:
CaF2 single crystal has an excellent lattice match with most materials with Perovskite structure and excellent Optical properties. It can be used as a substrate for the epitaxial growth of HTS and many oxide thin films.
| Crystal Structure | Cubic | Polishing | Single side / double side |
| Density | 3.18 g/cm3 | Orientation | <100><111> |
| Hardness | 4 Mohs | Dimension | 5*5*0.5 mm, 10*10*0.5 mm,20*20*0.5 mm |
| Lattice Parameters | a = 5.462Å | 5*5*1 mm, 10*10*1 mm, 20*20*1mm | |
| Melting Point | 1418 ℃ | Customized | Available |
