Nb:SrTiO3 Nb:STO Niobium Doped Strontium Titanate Optical Substrate

Name: Nb:SrTiO3 Nb:STO Niobium Doped Strontium Titanate Optical Substrate
Brand: Crystro
SKU: CRSTO-4
Rating: 4.5 (171 reviews)

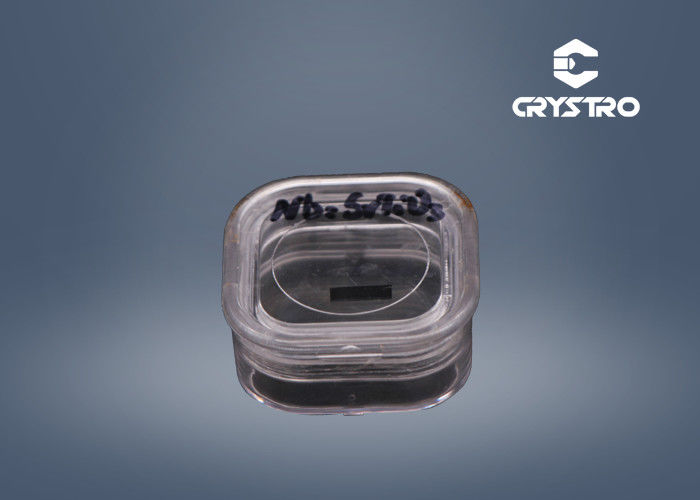

Large Image : Nb:SrTiO3 Nb:STO Niobium Doped Strontium Titanate Optical Substrate

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRSTO-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	Niobium Doped Strontium Titanate	Chemical Formula:	Nb: SrTiO3
Density:	5.117g/cm3	Melting Point:	2080 ℃
Hardness:	6 Mohs	Crystal Structure:	Cubic
Appearance:	Black	Lattice Parameters:	A = 3.905Å
Thermal Expansion:	10.4 (x10-6/ ℃)
High Light:	Nb:SrTiO3 Optical Substrate , Nb:STO Optical Substrate , Niobium Doped Strontium Titanate Substrate

Nb: SrTiO3 (Nb: STO) Niobium Doped Strontium Titanate Crystal Substrates

Introduction:

Niobium (Nb) doped SrTiO3 (NSTO) single crystal has a similar structure to SrTiO3.But Nb: SrTio3 crystals have different electrical resistivity values depending on the Nb doping concentration.

Technical parameters:
Crystal Structure	Cubic	Polishing	Single side / double side
Density	5.117 g/cm3	Orientation	<100><110><111>
Hardness	6 Mohs	Dimension	550.5 mm, 10100.5 mm,20200.5 mm
Lattice Parameters	a = 3.905Å		551 mm, 10101 mm, 20201mm
Melting Point	2080 ℃	Customized	Available
Redirection precision	±0.5°	Redirection the edge	2° (special in 1°)

Product details:

Nb:SrTiO3 Nb:STO Niobium Doped Strontium Titanate Optical Substrate 0
