Product Details:
Payment & Shipping Terms:
|
| Product Name: | Yttrium Stabilized Zirconia | Chemical Formula: | YSZ |
|---|---|---|---|
| Orientation: | [100] | Crystal Structure: | Cubic |
| Lattice Parameters: | C=5.125Å | Density: | 5.80 G/cm3 |
| Hardness: | 8-8.5 Mohs | Melting Point: | 2500℃ |
| Index Of Refraction: | 1.96 | ||
| High Light: | YSZ Optical Substrate,Yttrium Stabilized Zirconia Optical Substrate,YSZ Wafer Substrate |
||
Introduction:

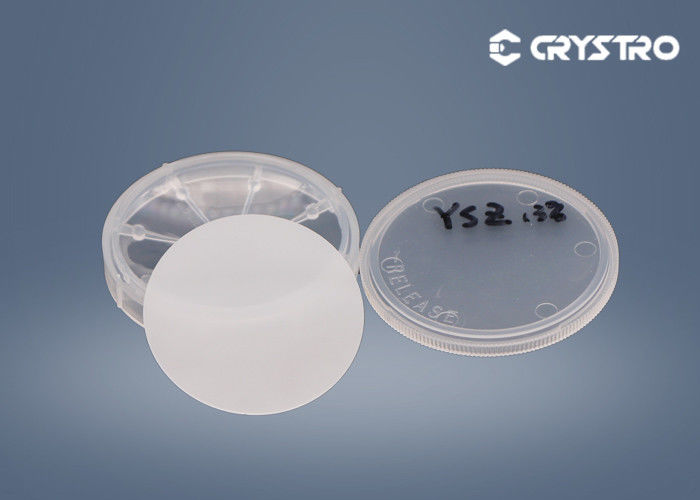

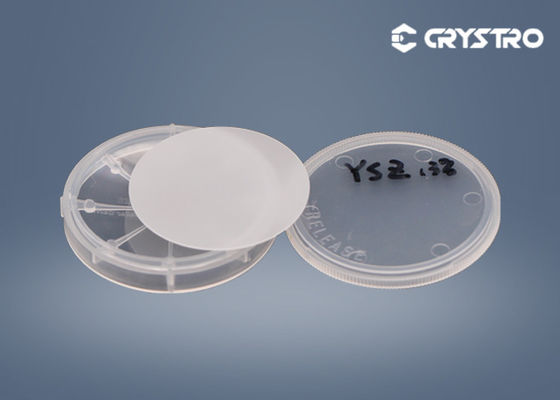

Yttrium-doped Zirconia (YSZ) single crystal substrate is an excellent material used in high-temperature superconducting thin film growth. It has good mechanical and chemical stability.
Technical parameters:
| Crystal Structure | Cubic | Redirection the edge | 2°(special in 1°) |
| Density | 5.8 g/cm3 | Polishing | Single or double side polished |
| Hardness | 8-8.5(mohs) | Orientation | <100><110><111> |
| Dielectric Constants | ε=27 | Size |
5*5*0.5mm,10*10*0.5mm 2‘’*0.5 |
| Thermal expansion | 10.3 x 10^-6 /℃ | Customized | Available |
Contact Person: Chen Dongdong
Tel: +86 18326013523
Fax: 86-551-63840588
