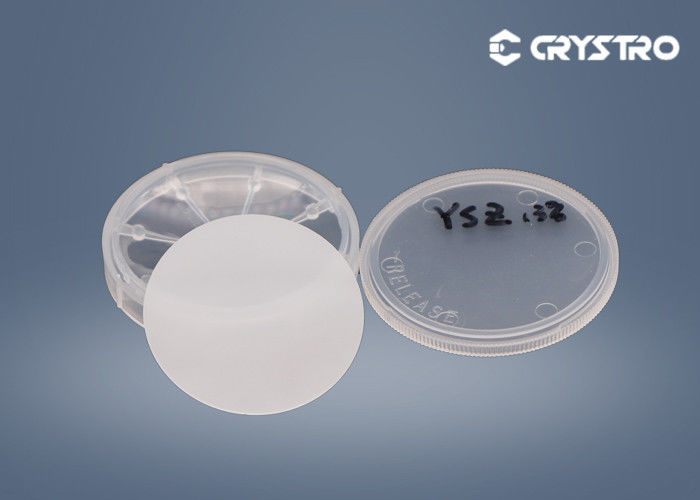

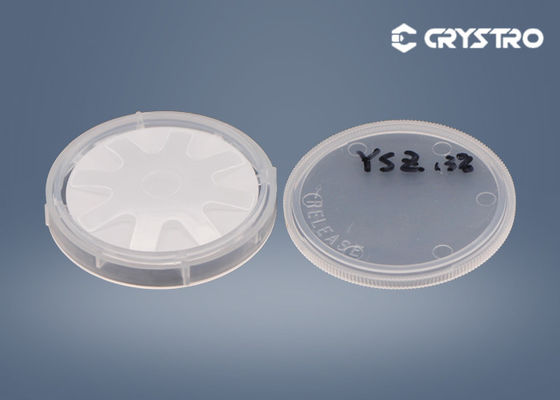

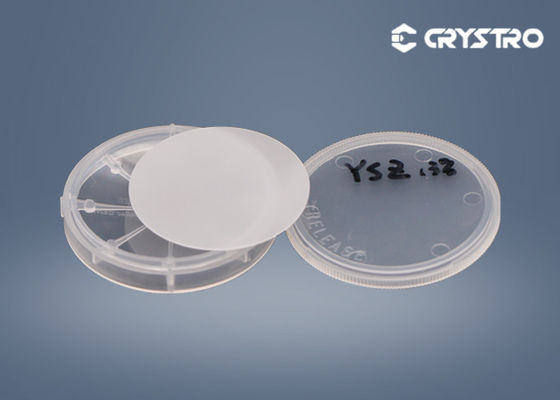

Yttrium Stabilized Zirconia YSZ Single Crystal Substrate

Yttrium Stabilized Zirconia YSZ Single Crystal Substrate
Yttrium Stabilized Zirconia YSZ Single Crystal Substrate Yttrium Stabilized Zirconia YSZ Single Crystal Substrate Yttrium Stabilized Zirconia YSZ Single Crystal Substrate

Large Image :  Yttrium Stabilized Zirconia YSZ Single Crystal Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRYSZ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Yttrium Stabilized Zirconia Chemical Formula: YSZ
Crystal Structure: Cubic Lattice Parameters: C=5.125Å
Density: 5.80 G/cm3 Hardness: 8-8.5 Mohs
Melting Point: 2500℃ Index Of Refraction: 1.96
High Light:

Yttrium Stabilized Zirconia Optical Substrate

,

YSZ Yttrium Stabilized Zirconia Substrate

,

YSZ Single Crystal Substrate





Optical Substrate Yttrium Stabilized Zirconia (YSZ) Single Crystals Substrate



Introduction:

Yttrium-doped Zirconia (YSZ) single crystal substrate is an excellent materials used in high-temperature superconducting thin films growth.
it has good mechanicaland chemical stability .







Technical parameters:



 Crystal Structure  Cubic  Redirection the edge   2°(special in 1°)
 Density  5.8 g/cm3  Polishing  Single or double side polished
 Hardness   8-8.5(mohs)  Orientation  <100><110><111>
 Dielectric Constants  ε=27  Size

 5*5*0.5mm,10*10*0.5mm

 2‘’*0.5

 Thermal expansion  10.3 x 10^-6 /℃  Customized  Available



 Yttrium Stabilized Zirconia YSZ Single Crystal Substrate 0
