Product Details:
Payment & Shipping Terms:
|
| Product Name: | Strontium Titanate | Chemical Formula: | SrTiO3 |
|---|---|---|---|
| Density: | 5.175 (g/cm3) | Melting Point: | 2080 ℃ |
| Hardness: | 6 -6.5 (mohs) | Crystal Structure: | Cubic |
| Appearance: | White Soild | Lattice Parameters: | A = 3.905Å |
| High Light: | STO Single Crystal Substrate,Strontium Titanate STO Substrates,SrTiO3 Single Crystal Substrate |
||

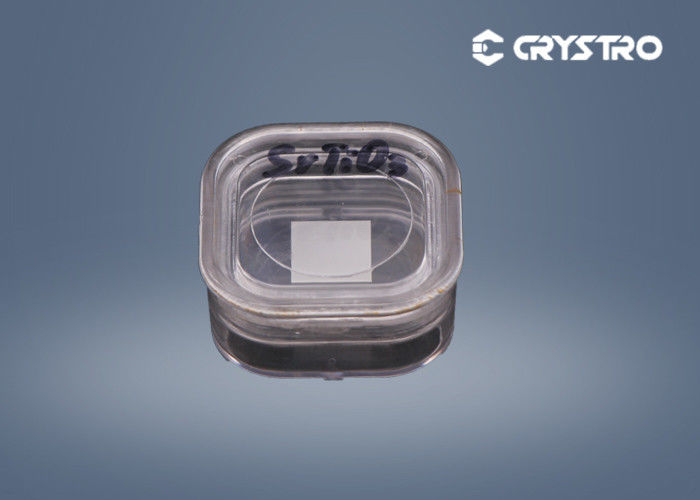

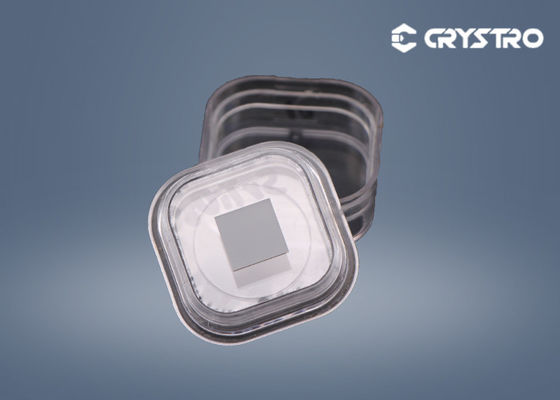

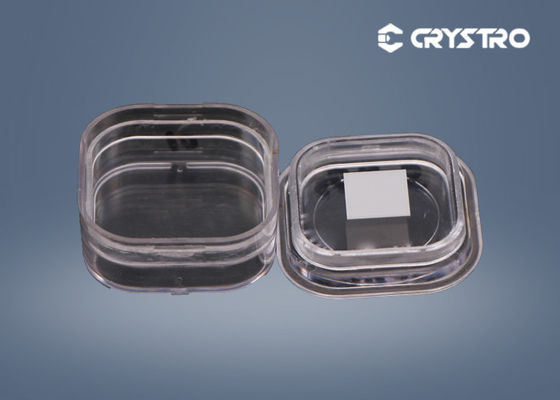

Strontium Titanate SrTiO3 STO Single Crystal Substrates
Introduction:
Strontium Titanate (SrTiO3) substrate is commonly used as a substrate material for high-temperature superconducting oxide thin film. Because the SrTiO3 single crystal provides a good lattice match to most materials with Perovskite structure.
| Crystal Structure | Cubic | Polishing | Single side / double side |
| Density | 5.175 g/cm3 | Orientation | <100><110><111> |
| Hardness | 6-6.5 Mohs | Dimension | 5*5*0.5 mm, 10*10*0.5 mm,20*20*0.5 mm |
| Lattice Parameters | a = 3.905Å | 5*5*1 mm, 10*10*1 mm, 20*20*1mm | |
| Melting Point | 2080 ℃ | Customized | Available |
