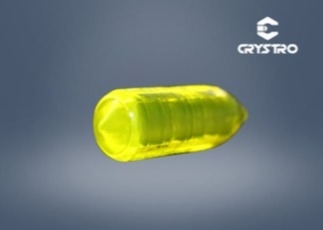

Ce Doped LuAg Scintillation Crystal High Net Effect For Solid State Lasers

Ce Doped LuAg Scintillation Crystal High Net Effect For Solid State Lasers
Ce Doped LuAg Scintillation Crystal High Net Effect For Solid State Lasers

Large Image :  Ce Doped LuAg Scintillation Crystal High Net Effect For Solid State Lasers

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRLUAG-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Item Name: Cerium Doped Lutetium Aluminum Garnet Chemical Formula: Ce: Lu3Al5O12
Density: 6.73 G/cm3 Hardness: 8.5
Thermal Conductivity(W/℃cm,25℃): 0.08 Light Yield (Photons/MeV): 15000
Melting Point: 1970℃ Decay Time (ns): 80
High Light:

Ce Doped LuAg Scintillation Crystal

,

Ce LUAG Crystal High density

,

Good Chemical Stability Ce LUAG Crystal

Ce Doped LuAg Scintillation Crystal With High Net Effect For Solid-State Lasers

Good Chemical Stability LuAG(Ce)  Crystal For Medical Imaging Equipment



Ce: LuAG LuAG (Lutetium Aluminum Garnet) is of particular interest as a material for diode pumped solid-state lasers employing active ions such as Yb, Tm, Er, and Ho. This host has the smallest lattice constant of the rare earth garnets and the resulting crystal field in LuAG yields narrower linewidths and higher absorption and emission cross-sections. The net effect is higher efficiency laser devices.





Application:

  • Computed tomography (CT)
  • Positron emission computed tomography (PET)
  • Single-photon emission computed tomography (SPECT)
  •  X-ray imaging screens
  •  Laser & LED lighting



Main Advantages:

  • Good mechanical and chemical performance
  • High density
  • Fast decay time
  • Non--hygroscopicity



Main Properties :



Property Ce: LuAG
Hardness 8.5
Density 6.73 g/cm3
Thermal conductivity(W/℃cm,25℃) 0.08
expanding coefficient(10-6/℃) 8.8
Refractive index(λ=1.079μm) 1.84
Emission peak (nm) 510
Light yield (Photons•Mev-1) 15000
Decay time(ns) 80
Energy resolution <8%



Crystro offers:


Orientation Tolerence <0.5°
Thickness/Diameter Tolerance ±0.05 mm
Parallel 10''
Perpendicular 5'
Surface Quality 10/5
Clear Aperture >90%
Chamfer <0.2×45°
Maximum dimensions Max φ 60 mm




Product detail:
