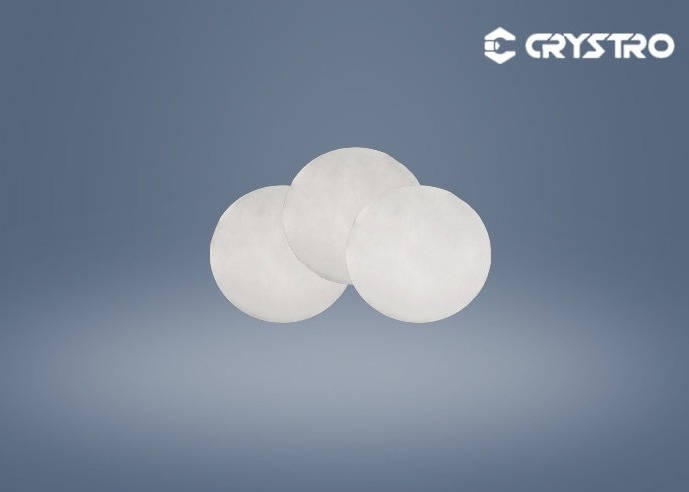

Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate
Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Large Image :  Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRGGG-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Item Name: Gallium Gadolinium Garnet Formula: Gd3Ga5O12
Lattic Parameter: A=12.376Å Growth Method: Czochralski
Density: 7.13g/cm3 Mohs Hardness: 8.0
Melting Point: 1725℃ Refractive Index: 1.954 At 1064nm
High Light:

GGG Single Crystal Substrate

,

Crystalline Material Single Crystal Substrate

,

Gd3Ga5O12 Crystal Substrate

Crystro GGG Gd3Ga5O12 Crystalline Material Single Crystal Substrate

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has a cubic lattice, a density of 7.08 g/cm3 and its Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are produced with the Czochralski method.





Main Advantages:



Low optical losses (<0.1%/cm)

High thermal conductivity (7.4W m-1K-1).

High laser damage threshold (>1GW/cm2)





Main Properties:



Chemical Formula Gd3Ga5O12
Lattic Parameter a=12.376Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm



















CRYSTRO can offer:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/4 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Apereture >90%
Large Dimensions of Crystals 2.8-76 mm in diameter
