| Production Name: | Gallium Gadolinium Garnet (GGG) | Chemical Formula: | Gd3Ga5O12 |
|---|---|---|---|
| Lattic Parameter: | A=12.376Å | Growth Method: | Czochralski |
| Density: | 7.13g/cm3 | Mohs Hardness: | 8.0 |
| Melting Point: | 1725℃ | Refractive Index: | 1.954 At 1064nm |
| High Light: | Gallium Gadolinium Garnet Boules GGG Crystal,Single GGG Crystal,Optical Substrate Single GGG Crystal |
||

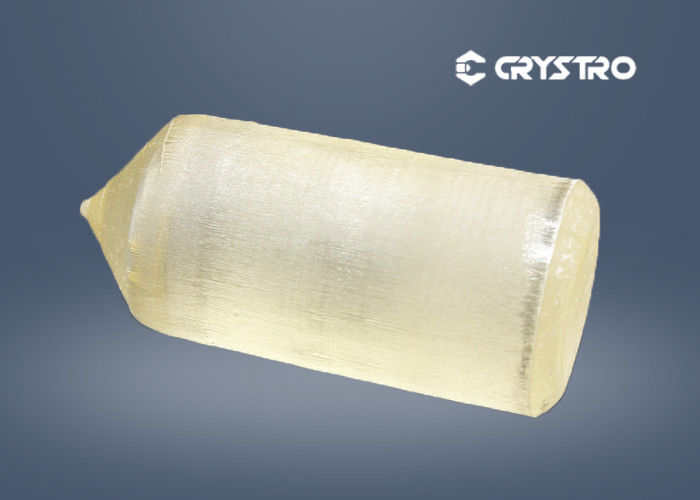

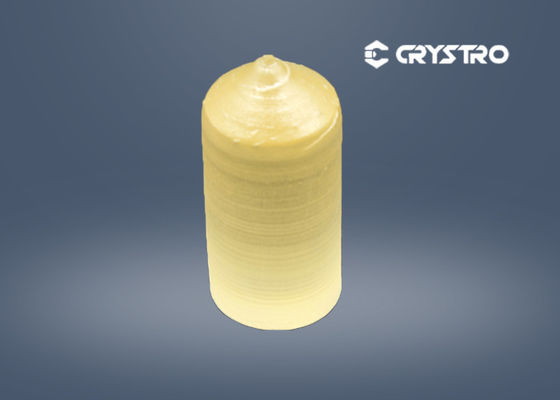

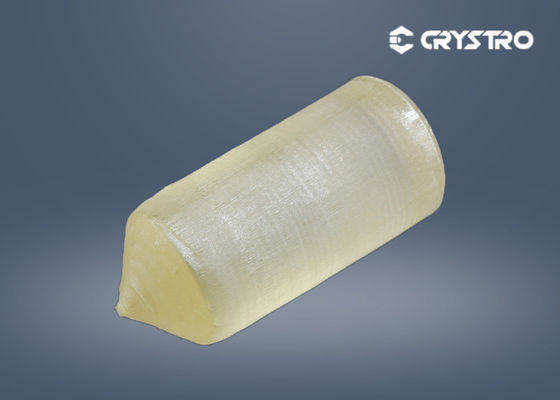

Gallium Gadolinium Garnet (Gd3Ga5O12 or GGG) single crystal is material with good physical and mechanical properties and chemical stability. which make it promising for use in fabrication of various optical components as well as substrate material for magneto – optical films and high – temperature superconductors. GGG is also the best substrate material for made the microwave isolators.
Main Advantages:
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2)
Main Properties:
| Chemical Formula | Gd3Ga5O12 |
| Lattic Parameter | a=12.376Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO can offer:
| Orientation | [111] within ±15 arc min |
| Wave Front Distortion | <1/4 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Large Dimensions of Crystals | 2.8-76 mm in diameter |
