Product Details:
Payment & Shipping Terms:
|

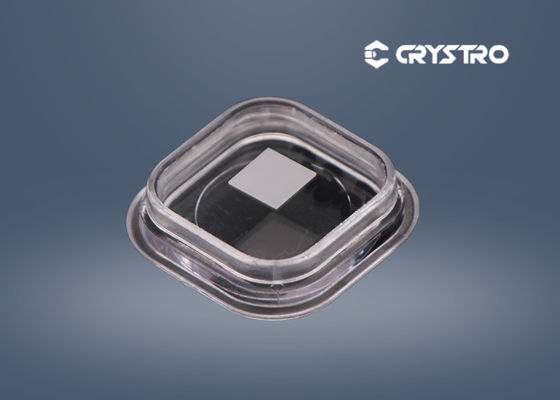

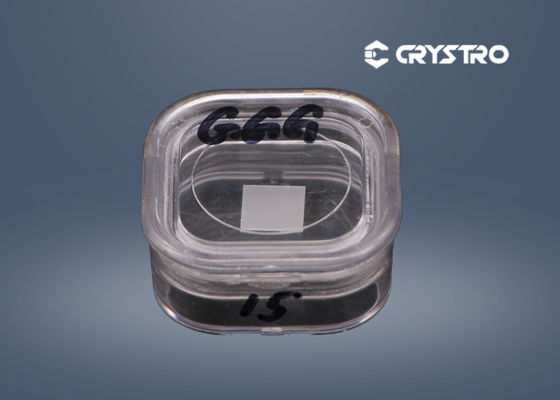

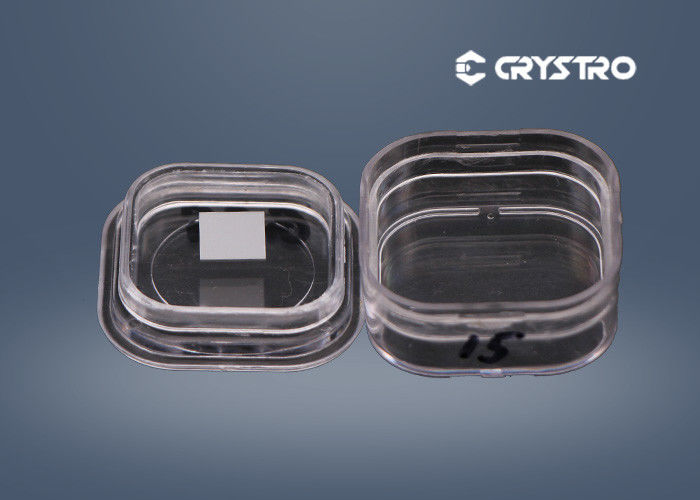

| Production Name: | GGG Substrate | Chemical Formula: | Gd3Ga5O12 |
|---|---|---|---|
| Size: | 10*10*0.5mm | Orientation: | [100] [110] [111] |
| Lattic Parameter: | A=12.376Å | Density: | 7.13g/cm3 |
| Mohs Hardness: | 8.0 | Melting Point: | 1725℃ |
| High Light: | 10*10*0.5mm GGG Substrate,Gd3Ga5O12 Optical Substrate,10*10*0.5mm GGG Gallium Gadolinium Garnet |
||
Gallium Gadolinium Garnet (Gd3Ga5O12 or GGG) single crystal is a material with good physical and mechanical properties and chemical stability. which make it promising for use in the fabrication of various optical components as well as a substrate material for magneto-optical films and high – temperature superconductors.
| Name | GGG Crystal |
|
Chemical Formula |
Gd3Ga5O12 |
|
Lattic Parameter |
a=12.376Å |
|
Growth Method |
Czochralski |
|
Density |
7.13g/cm3 |
| Hardness | 8.0 Mohs |
| Melting Point | 1725℃ |
| Refractive Index |
1.954 at 1064nm |
| Size | MAX Dia 4 inches |
| Thickness | 0.5mm/ 1mm |
| Polishing | Single or Double side |
|
Orientation |
<111>±0.2° |
| Edge Orientation accuracy | 2°(special in 1°) |
| Cutting | Special size and orientation are available upon request |
| Ra | ≤1nm |
| Package |
100 clean bag,1000 exactly clean bag
|
