Neodymium Doped Yttrium Aluminum Garnet

Crystro Nd YAG Nd : Y3Al5O12 1064 Nm Laser Crystal Laser Marking

Name: Crystro Nd YAG Nd : Y3Al5O12 1064 Nm Laser Crystal Laser Marking
Brand: Crystro
SKU: CRNDYAG-3
Rating: 4.5 (140 reviews)

Large Image : Crystro Nd YAG Nd : Y3Al5O12 1064 Nm Laser Crystal Laser Marking

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRNDYAG-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGramm,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Formula:	Nd:Y3Al5O12	Growth Method:	Czochralski
Density:	4.5g/cm3	Hardness:	8.5 Mohs
Melting Point:	1970℃	Lattic Parameter:	A=12.01Å
Refractive Index:	1.82	Application:	Laser Marking
High Light:	Crystro Laser Crystal , 1064 Nm Laser Crystal , Laser Marking Nd YAG Crystal

Crystro Nd YAG Nd:Y3Al5O12 1064 Nm Laser Crystal Laser Marking

Introduction:

Neodymium-doped yttrium aluminum garnet (Nd:YAG) is the earliest and most famous and most widely used laser crystal. Because of its excellent many basic properties, Nd:YAG is still often used in near-far infrared solid-state lasers and their frequency doubling and frequency doubling. Nd:YAG is also widely used in medical and industrial lasers, such as laser marking machines, cutting machines, laser therapy instruments, beauty instruments and markers.

Main Properties:

Chemical Formula	Nd: Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82
Extinction Ratio	25 dB
Poisson Ratio	0.25

Main Advantages:

High gain
Low threshold
High efficiency
The low loss at 1064nm
High Optical quality
Good thermal conductivity and shock characteristics
Applicable to many laser working modes(continuous, pulse , Q-switch, mode lock)

Crystro offers:

Dimensions	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
WaveFront Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arcmin
Surface Quality	10/5 Scratch/Dig
Clear Aperture	>90%
Damage Threshold	>500MW/cm²

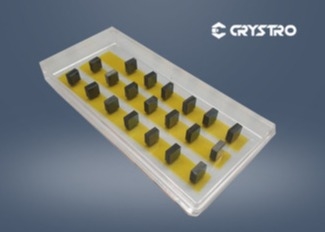

Crystal picture:

Crystro Nd YAG Nd : Y3Al5O12 1064 Nm Laser Crystal Laser Marking 0
