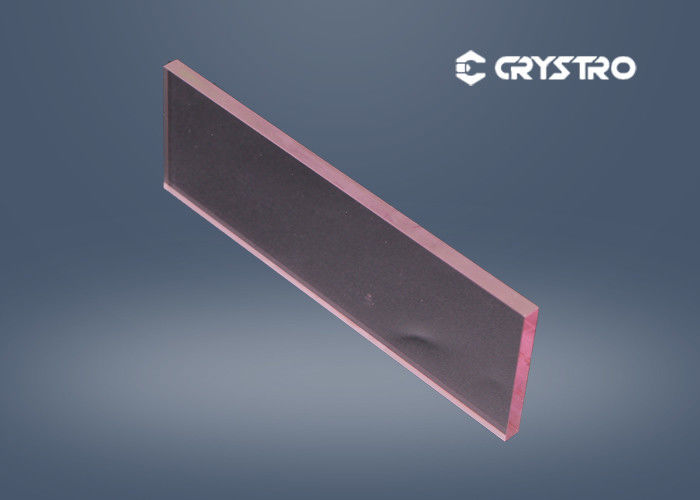

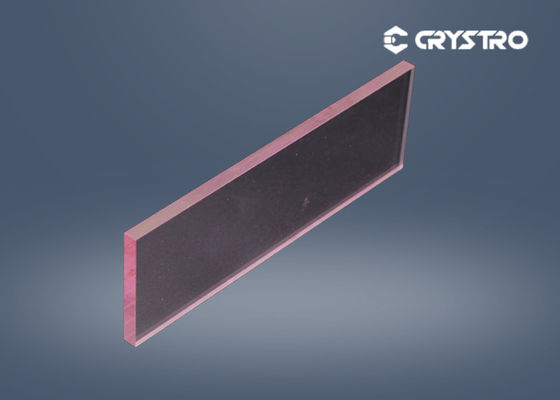

High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal

High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal
High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal

Large Image :  High Gain Coefficient Neodymium Doped Yttrium Aluminum Garnet Nd YAG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRNDYAG-18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGramm,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Nd:YAG Crystal Chemical Formula: Nd:Y3Al5O12
Growth Method: Czochralski Density: 4.56 G/cm3
Mohs Hardness: 8.5 Melting Point: 1950℃
Lattic Parameter: A=12.01Å Refractive Index: 1.82
Poisson Ratio: 0.25
High Light:

High Gain Coefficient Nd YAG Crystal

,

Neodymium Doped Yttrium Aluminum Garnet

,

Nd YAG Yttrium Aluminum Garnet

High Power Lasers Material Nd: YAG (Neodymium Doped Yttrium Aluminum Garnet) Single Crystals Slabs



Introduction :

Nd: YAG (Yttrium aluminum garnet doped with neodymium Nd: Y3Al5O12) is a common laser crystal. Because of its many basic performances, Nd: YAG is still often used in near-far-infrared solid-state lasers. The main advantage of this crystal is the neodymium ion which provides the leasing activity in the crystal because it replaces a small fraction of yttrium ions in the crystal. Nd: YAG is mainly used as a laser in industrial, medical, and scientific applications



Applications :

  • Nd: YAG can produce blue laser with the frequency-doubling of 946nm
  • Nd: YAG can be operated in a very high power laser up to KW level
  • Nd: YAG can be Q-switched with Cr4+YAG directly
  • Due to the cubic symmetry and high quality, Nd: YAG is easy to operate with TEM00 mode

Main Advantages :

  • High gain
  • Low threshold
  • High efficiency
  • Low loss at 1064nm
  • High Optical quality
  • Good thermal conductivity and shock characteristics
  • Applicable to many laser working modes(continuous,pulse ,Q-switch ,mode lock)



Crystro offers :



Dimension Diameter from 3 to 40mm
Nd Dopant level From 0.3-1.5 atm%
WaveFront Distortion 1/8 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.5mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 10 arc Seconds
Perpendicularity < 15 arc min
Surface Quality 10/5 Scratch/Dig
Clear Aperture >90%
Damage Threshold >500MW/cm2
