Neodymium Doped Yttrium Aluminum Garnet

3311mm Nd YAG Neodymium Yttrium Aluminum Garnet Laser Crystals

Name: 3*3*11mm Nd YAG Neodymium Yttrium Aluminum Garnet Laser Crystals
Brand: Crystro
SKU: CRNDYAG-11
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (165 reviews)

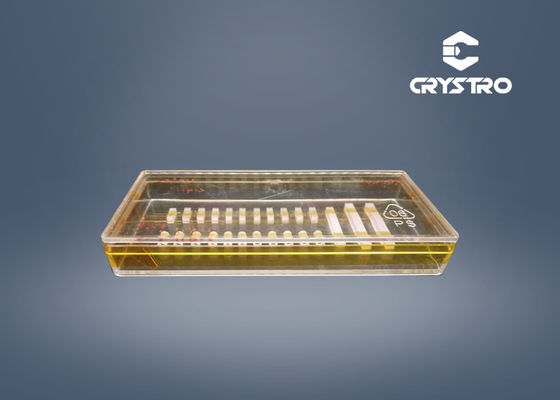

Large Image : 3*3*11mm Nd YAG Neodymium Yttrium Aluminum Garnet Laser Crystals

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRNDYAG-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGramm,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	Neodymium Doped Yttrium Aluminum Garnet (Nd:YAG)	Chemical Formula:	Nd:Y3Al5O12
Growth Method:	Czochralski	Size:	3310 Mm
Density:	4.5g/cm3	Mohs Hardness:	8.5
Melting Point:	1970℃	Lattic Parameter:	A=12.01Å
Refractive Index:	1.82
High Light:	3311mm Nd YAG Crystal , 3311mm Yttrium Aluminum Garnet , Neodymium Yttrium Aluminum Garnet Crystal

**3311mm Nd YAG laser rod Neodymium Doped Yttrium Aluminum Garnet Laser Crystal**

Neodymium Doped Yttrium Aluminum Garnet – Nd: YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd: YAG laser crystals suitable for high power continuous wave, high-intensity Q-switched, and single-mode operation.

Main Properties:

Chemical Formula	Nd: Y₃Al₅O₁₂
Lattic Parameter	a=12.01Å
Growth Method	Czochralski
Density	4.5g/cm³
Mohs Hardness	8.5
Melting Point	1970℃
Refractive Index	1.82
Extinction Ratio	25 dB
Poisson Ratio	0.25

Features :

High gain coefficient
Low lasing threshold
Excellent optical, mechanical, and physical properties
High slope efficiency
Wide absorption bandwidth

Applications:

Nd: YAG can produce blue laser with the frequency-doubling of 946nm
Nd: YAG can be operated in a very high power laser up to kw level
Nd: YAG can be Q-switched with Cr4+YAG directly
Due to the cubic symmetry and high quality, Nd: YAG is easy to operate with TEM00 mode

Crystro can offer :

Dimension	Diameter from 3 to 40mm
Nd Dopant level	From 0.3-1.5 atm%
Wavefront Distortion	1/8 wave@632
Diameter Tolerance	±0.05mm
Length Tolerance	±0.5mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 10 arc Seconds
Perpendicularity	< 15 arcmin
Surface Quality	10/5 Scratch/Dig
Clear Aperture	>90%
Damage Threshold	>500MW/cm²

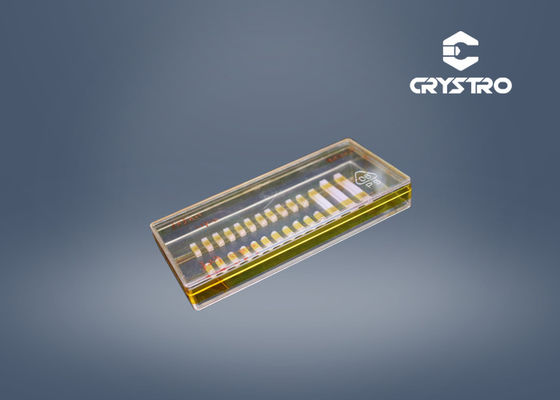

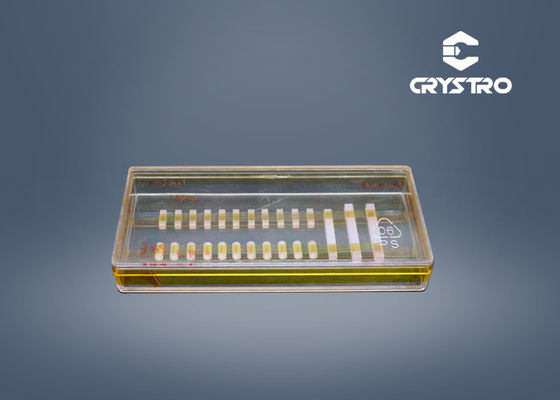

Product detail:

Tag:

Contact Person: Zheng

Tel: +86 18255496761

Fax: 86-551-63840588
