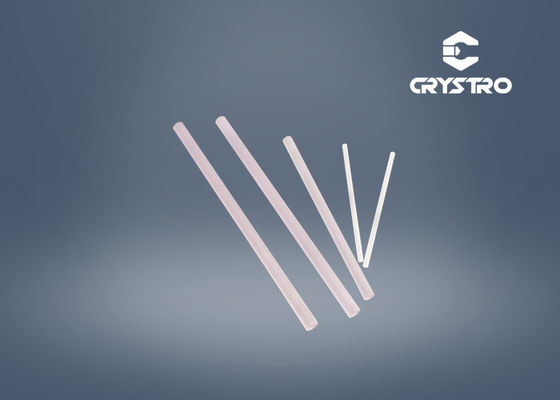

Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet

Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet
Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet

Large Image :  Nd Y3Al5O12 Laser Crystals Nd YAG Yttrium Aluminum Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRNDYAG-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable

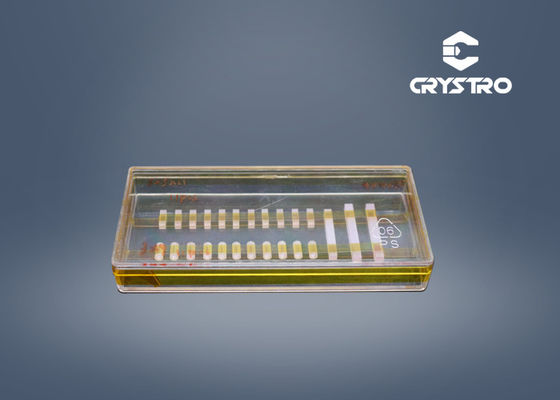

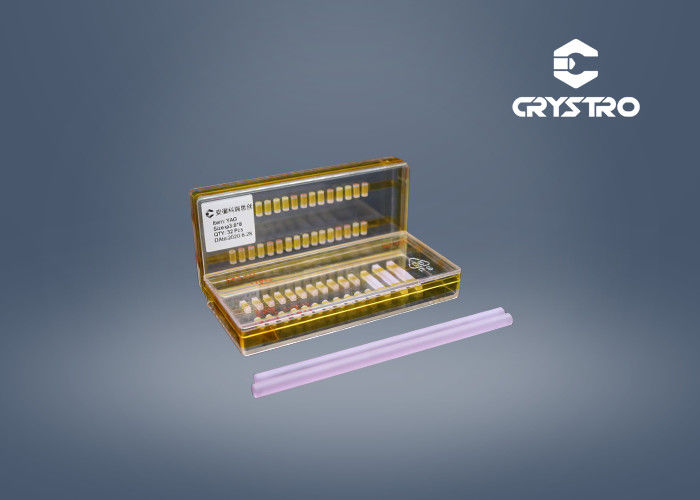

Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGramm,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Neodymium Doped Yttrium Aluminum Garnet (Nd:YAG) Chemical Formula: Nd:Y3Al5O12
Growth Method: Czochralski Customize: Available
Density: 4.5g/cm3 Mohs Hardness: 8.5
Melting Point: 1970℃ Lattic Parameter: A=12.01Å
Refractive Index: 1.82 Crystal Structure: Cubic – La3d
Poisson Ratio: 0.25
High Light:

Nd Y3Al5O12 YAG Yttrium Aluminum Garnet

,

Nd YAG Yttrium Aluminum Garnet

,

Nd YAG Yttrium Aluminum Garnet Laser

Custom Size High optical quality Nd: YAG (yttrium aluminum garnet) Laser Crystals

Introduction :

Neodymium Doped Yttrium Aluminum Garnet – Nd: YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd: YAG laser crystals suitable for high power continuous wave, high-intensity Q-switched, and single-mode operation.



Main Features :

  • High gain coefficient
  • Low lasing threshold
  • Excellent optical, mechanical, and physical properties
  • High slope efficiency
  • Wide absorption bandwidth



Material Properties :



Chemical Formula Nd: Y3Al5O12
Lattic Parameter a=12.01Å
Growth Method Czochralski
Density 4.5g/cm3
Mohs Hardness 8.5
Melting Point 1970℃
Refractive Index

1.82

Extinction Ratio 25 dB
Poisson Ratio 0.25
















Crystro offers :



Dimension Diameter from 3 to 40mm
Nd Dopant level From 0.3-1.5 atm%
Wavefront Distortion 1/8 wave@632
Diameter Tolerance ±0.05mm
Length Tolerance ±0.5mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 10 arc Seconds
Perpendicularity < 15 arcmin
Surface Quality 10/5 Scratch/Dig
Clear Aperture >90%
Damage Threshold >500MW/cm2
