Product Details:
Payment & Shipping Terms:
|
| Item Name: | GGG Substrate | Formula: | Gd3Ga5O12 |
|---|---|---|---|
| Orientation: | [111] | Measurement: | 76.2mm |
| Tickness: | 0.3mm | Polish: | Single Side |
| Lattic Parameter: | A=12.376Å | Density: | 7.13g/cm3 |
| Mohs Hardness: | 8.0 | Melting Point: | 1725℃ |
| High Light: | Gadolinium Gallium Garnet Single Crystal,GGG Single Crystal Substrate,GGG Crystal For Epitaxial Growth |
||

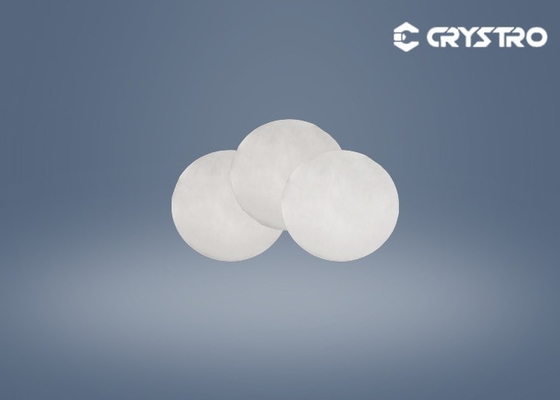

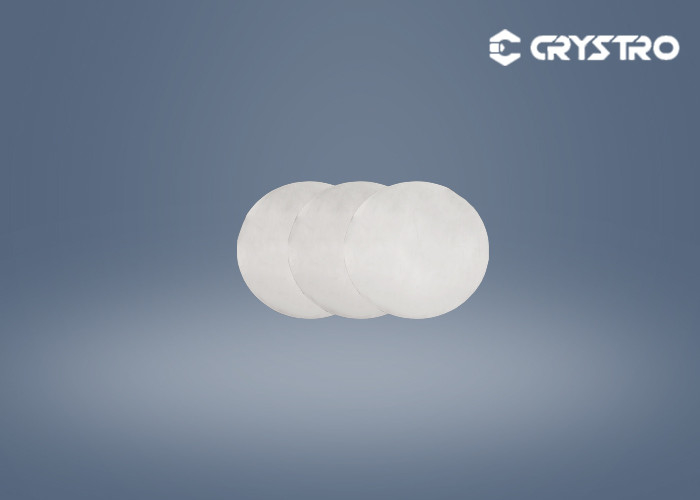

Gadolinium Gallium Garnet GGG Single Crystal Substrate For Epitaxial Growth
Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has a cubic lattice, a density of 7.08 g/cm3 and its Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are produced with the Czochralski method. During production, various dopants can be added for colour modification. The material is also used in fabrication of various optical components and as a substrate material for magneto–optical films (magnetic bubble memory.). GGG can also be used as a seed substrate for the growth of other garnets such as yttrium iron garnet.
| Name | GGG Crystal |
|
Chemical Formula |
Gd3Ga5O12 |
|
Lattice Parameter |
a=12.376Å |
|
Growth Method |
Czochralski |
|
Density |
7.13g/cm3 |
| Hardness | 8.0 Mohs |
| Melting Point | 1725℃ |
| Refractive Index |
1.954 at 1064nm |
| Size | MAX Dia 4 inches |
| Thickness | 0.5mm/ 1mm |
| Polishing | Single or Double side |
|
Orientation |
<111>±0.2° |
| Edge Orientation accuracy | 2°(special in 1°) |
| Cutting | Special size and orientation are available upon request |
| Ra | ≤1nm |
| Package |
100 clean bag,1000 exactly clean bag
|
