Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film

Certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
China ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd. certification
I'm Online Chat Now

Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film

Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film
Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film

Large Image :  Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLAO-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Item Name: LaAlO3 Crystal Crystal Density: 6.52 (g/cm³)
Mohs Hardness: 6-6.5(mohs) Melting Point (℃): 2080℃
Thermal Expansion: 9.4x10-6/℃ Permittivity: ε = 21
Growth Method: Czochralski Loss Tangent (10ghz): ~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k
High Light:

Transparent LaAlO3 Crystal

,

Optically LaAlO3 Crystal

,

0.5mm LaAlO3 Crystal

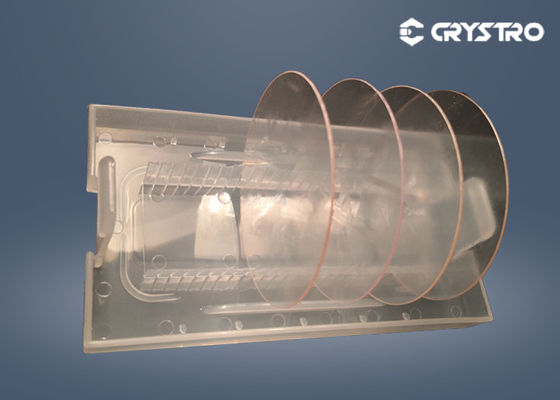

Crystro Optically Transparent LaAlO3 LAO Epitaxial Substrate Thin Film

LaAlO3 is an  oxide with a distorted perovskite structure



Crystalline LaAlO3 has a relatively high relative dielectric constant of ~25. LAO's crystal structure is a rhombohedral distorted perovskite with a pseudocubic latttice parameter of 3.787 angstroms at room temperature. Polished single crystal LAO surface show twin defects visible to the naked eye.



Main Features:

  • good chemical stability
  • Good lattice match most materials with Perovskite structure
  • Low dielectric constant
  • Low microwave loss



Applications:

  • High-Temperature Superconducting, magnetic, and ferroelectric thin films
  • Low loss microwave applications
  • Dielectric resonance applications



Crystro offers :

Size Max Φ 76.2mm (3''inches)
Thickness 0.5mm /1.0 mm
Polishing Single or Double
Crystal Orientation <100> <110> <111>
Redirection precision ±0.5°
Redirection the edge 2°(special in 1°)
Angle of crystalline Special size and orientation are available upon request
Ra ≤5Å(5µm×5µm)
Pack Class100 clean bag,Class 1000 clean bag



Crystro Optically Transparent LaAlO3 Crystal LAO Epitaxial Substrate Thin Film 0
