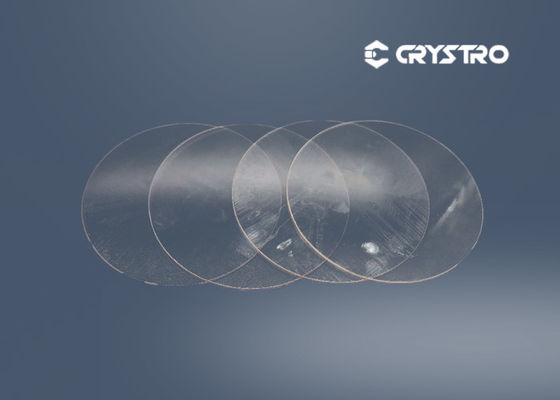

Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal

Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal
Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal

Large Image :  Lanthanum Aluminate Crystal Optical Substrate LaAlO3 Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRLAO-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: LaAlO3 Crystal Density: 6.52 (g/cm³)
Hardness: 6-6.5(mohs) Melting Point (℃): 2080℃
Thermal Expansion: 9.4x10-6/℃ Permittivity: ε = 21
Growth Method: Czochralski Loss Tangent (10ghz): ~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k
Color And Appearance: From Brown To Brownish
High Light:

LaAlO3 Lanthanum Aluminate Substrate

,

Lanthanum Aluminate LaAlO3 Crystal

,

Lanthanum Aluminate LaAlO3 Optical Substrate




LaAlO3 Lanthanum Aluminate High-Temperature Superconducting Substrates







LaAlO3  (Lanthanum aluminate) single crystal can provide good lattice matching for many perovskite structure materials.

It is an excellent substrate for epitaxial growth of high-temperature superconductors (HTS), magnetic, and ferroelectric thin films. Crystro offers high-quality LaAlO3 Crystal (Max φ76.2mm).



Main Features :

  • good chemical stability
  • Good lattice match most materials with Perovskite structure
  • Low dielectric constant
  • Low microwave loss



Applications :

  • High-Temperature Superconducting, magnetic, and ferroelectric thin films
  • Low loss microwave applications
  • Dielectric resonance applications



Crystro offers :

Size Max Φ 76.2mm (3''inches)
Thickness 0.5mm /1.0 mm
Polishing Single or Double
Crystal Orientation <100> <110> <111>
Redirection precision ±0.5°
Redirection the edge 2°(special in 1°)
Angle of crystalline Special size and orientation are available upon request
Ra ≤5Å(5µm×5µm)
Pack Class100 clean bag,Class 1000 clean bag
