Ferro Electric Thin Films LaAlO3 Lanthanum Aluminate Wafer Substrate

Name: Ferro Electric Thin Films LaAlO3 Lanthanum Aluminate Wafer Substrate
Brand: Crystro
SKU: CRLAO-3
Rating: 4.6 (186 reviews)

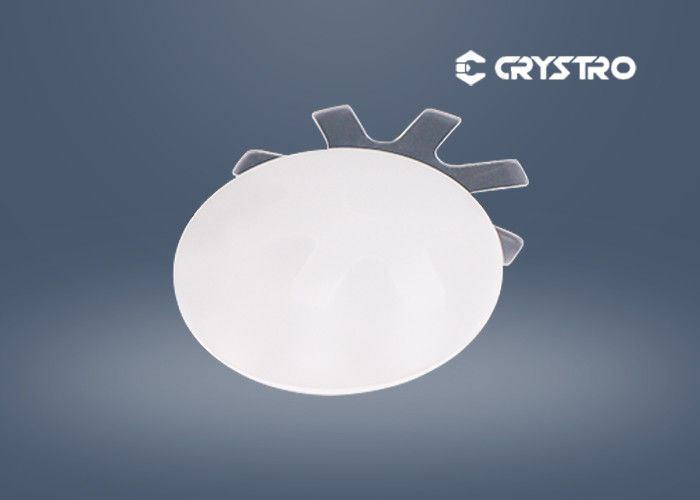

Large Image : Ferro Electric Thin Films LaAlO3 Lanthanum Aluminate Wafer Substrate

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRLAO-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram,paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Lanthanum Aluminate Crystal	Chemical Formula:	LaAlO3
Growth Method:	Czochralski	Crystal Orientation:	＜100＞＜110＞＜111＞
Thickness:	0.5mm /1.0 Mm	Polishing:	Single Or Double
Density:	6.52 (g/cm 3)	Hardness:	6-6.5（mohs）
Melting Point (℃):	2080℃	Thermal Expansion:	9.4x10-6/℃
High Light:	Ferro Electric LaAlO3 Wafer Substrate , LaAlO3 Wafer Substrate , Ferro Electric LaAlO3 Crystal

LAO Substrates LaAlO3 High-Temperature Superconducting Substrates Material

Introduction :

LaAIO3 is a high temperature superconducting single crystal substrate. It is an excellent substrate for epitaxial growth of high Tc superconductors, magnetic and ferroelectric thin films. The dielectric properties of LaAlO3 crystal are well suitable for low loss microwave and dielectric resonance applications.

Main Features :

good chemical stability
Good lattice match most materials with Perovskite structure
Low dielectric constant
Low microwave loss

Applications :

High-Temperature Superconducting, magnetic ,and ferroelectric thin films
Low loss microwave applications
Dielectric resonance applications

Material Properties :

Crystal Structure	Cubic
Growth Method	Czochralski method
Density	6.52(g/cm³)
Melt Point	2080℃
Hardness	6.5 Mohs
Thermal expansion	9.2 × 10^-6
Dielectric constants	24
Secant loss(10ghz)	~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k
Color and appearance	Transparent to brown based on annealing condition

Crystro offers :

Size	Max Φ 76.2mm (3''inches)
Thickness	0.5mm /1.0 mm
Polishing	Single or Double
Crystal Orientation	＜100＞＜110＞＜111＞
Redirection precision	±0.5°
Redirection the edge	2°(special in 1°)
Angle of crystalline	Special size and orientation are available upon request
Ra	≤5Å(5µm×5µm)
Pack	Class100 clean bag,Class 1000 clean bag

Ferro Electric Thin Films LaAlO3 Lanthanum Aluminate Wafer Substrate 0
