High Temperature Superconducting Single Crystal LaAlO3 LAO Substrate

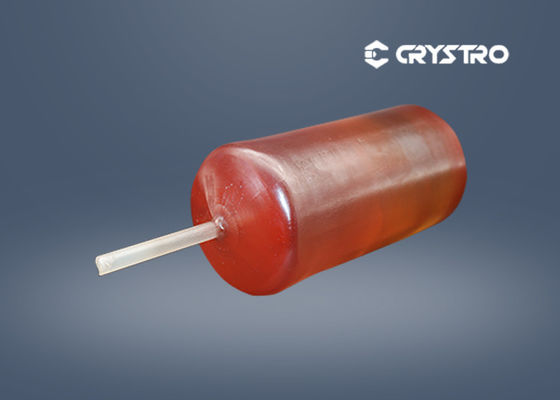

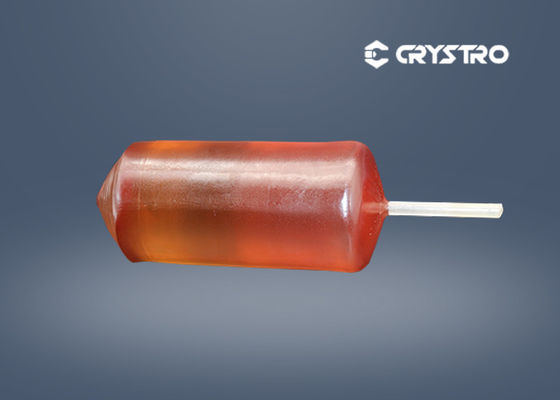

Large Image : High Temperature Superconducting Single Crystal LaAlO3 LAO Substrate

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRLAO-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram,paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Lanthanum Aluminate Crystal	Chemical Formula:	LaAlO3
Growth Method:	Czochralski	Density:	6.52 (g/cm 3)
Hardness:	6-6.5（mohs）	Melting Point (℃):	2080℃
Thermal Expansion:	9.4x10-6/℃	Permittivity:	ε = 21
Loss Tangent (10ghz):	~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k	Color And Appearance:	From Brown To Brownish
Highlight:	Single Crystal LaAlO3 LAO Substrate , Single Crystal LAO Substrate , Single Crystal LaAlO3 Substrates

LAO Substrates LaAlO3 Single Crystal Substrates Material

1.Introduction :

LaAIO3 is a high temperature superconducting single crystal substrate. It is an excellent substrate for epitaxial growth of high Tc superconductors, magnetic and ferroelectric thin films. The dielectric properties of LaAlO3 crystal are well suitable for low loss microwave and dielectric resonance applications.

2.Main Advantages :

Small dielectric constant;
wide energy gap;
large specific surface area;
certain activity;
good thermal stability
low dielectric loss;
good lattice matching;
small thermal expansion coefficient;
good chemical stability;

3.Material Properties :

Crystal Structure	Cubic
Growth Method	Czochralski method
Density	6.52(g/cm³)
Melt Point	2080℃
Hardness	6.5 Mohs
Thermal expansion	9.2 × 10^-6
Dielectric constants	24
Secant loss(10ghz)	~ 3 × 10 -4 @ 300k, ~ 0.6 × 10 -4 @ 77k
Color and appearance	Transparent to brown based on annealing condition

4.Crystro offers :

Size	Max Φ 76.2mm (3''inches)
Thickness	0.5mm /1.0 mm
Polishing	Single or Double
Crystal Orientation	＜100＞＜110＞＜111＞
Redirection precision	±0.5°
Redirection the edge	2°(special in 1°)
Angle of crystalline	Special size and orientation are available upon request
Ra	≤5Å(5µm×5µm)
Pack	Class100 clean bag,Class 1000 clean bag

High Temperature Superconducting Single Crystal LaAlO3 LAO Substrate 0
