Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator

Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator
Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator

Large Image :  Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTGG-26
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Item Name: Terbium Gallium Garnet Growth Method: Czochralski
Lattice Structure: Cubic Density: 7.13g/cm3
Melting Point: 1725℃ Lattice Parameter: A=12.355Å
High Light:

TGG Crystal Cubic

,

Magneto Optical TGG Crystal

,

TGG Crystal High Extinction

Crystro Magneto Optical TGG Srystal With Excellent Extinction In Isolator

Terbium Gallium Garnet TGG Magneto-optic Crystal With High Extinction



Caption:

TGG is a typical of excellent magneto-optic crystals. It is usually applied to Faraday rotators and free-space isolators for laser systems, optical circulators, optical modulators and magnetic field sensors and so on. We have been growing TGG crystals since our company's foundation and we have won reputation from all the world.


Main Features:

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

TGG Transmission Curve :


 Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator 0




Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter



















Product Details :

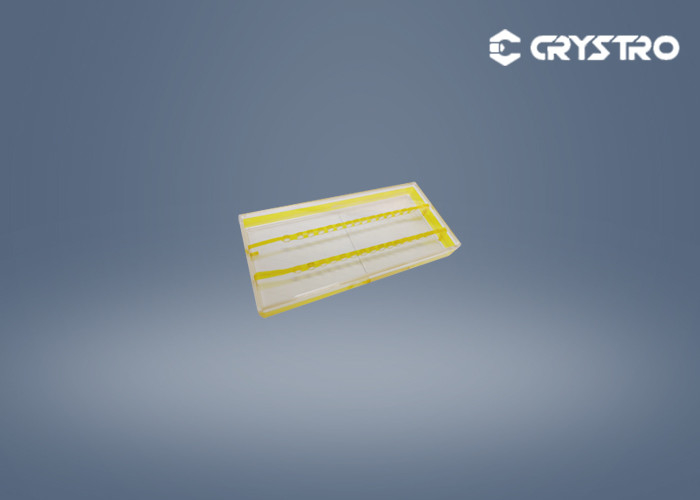

Crystro Magneto Optical TGG Crystal With Excellent Extinction In Isolator 1
