Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material

Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material
Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material

Large Image :  Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTGG-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic
Density: 7.13g/cm3 Size: D10*15 Mm
Mohs Hardness: 8.0 Melting Point: 1725℃
Refractive Index: 1.954 At 1064nm Lattic Parameter: A=12.355Å
High Light:

10*15 Magneto Optical Material

,

TGG Magneto Optical Material

,

10*15 TGG Crystals

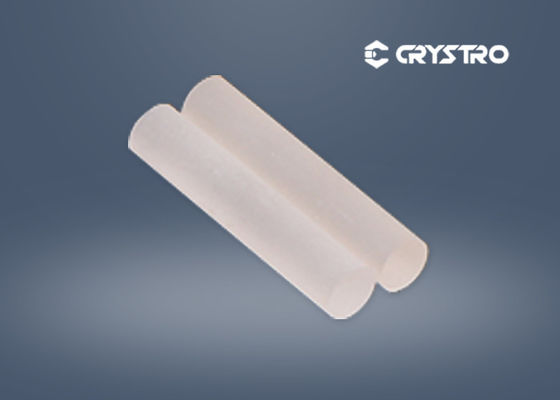

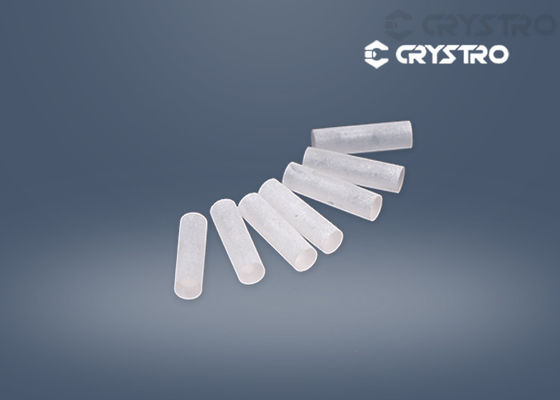

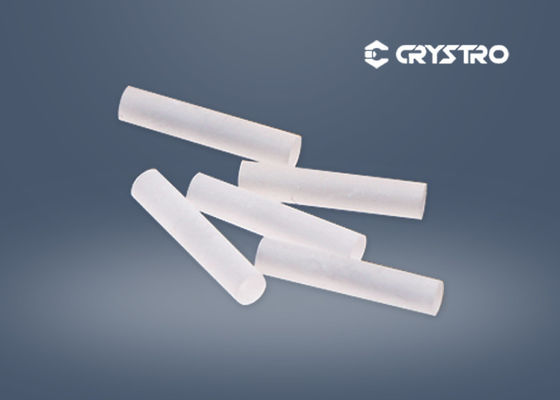

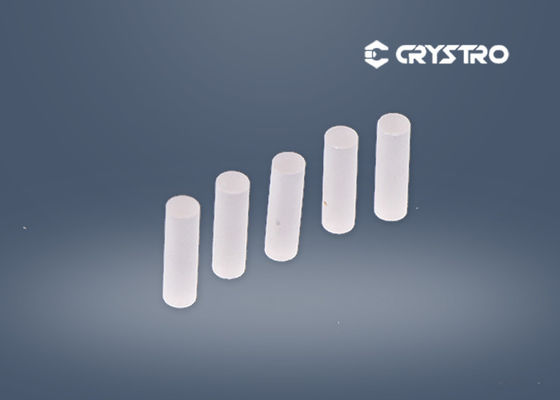

Low Optical Loss Magneto Optical Material Terbium Gallium Garnet TGG Crystal Rods Dia 10*15 mm



Introduction :

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet ,an magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators.It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.

Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

Main Advantages :

1. Large Verdet Constant :35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity : 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2



Crystro TGG rods specification :

We can offer customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter
