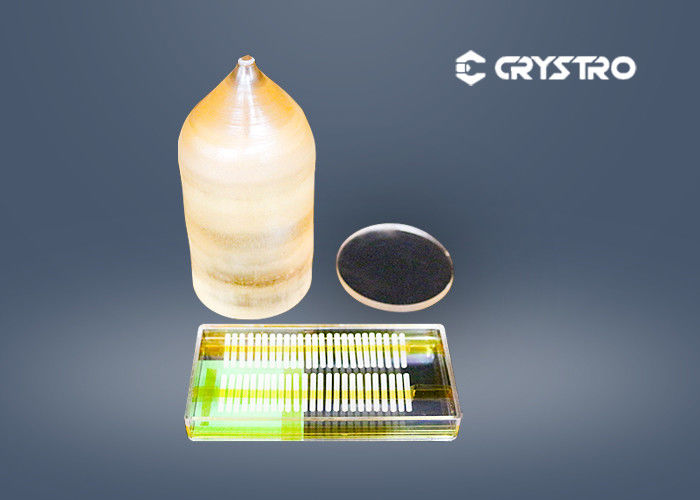

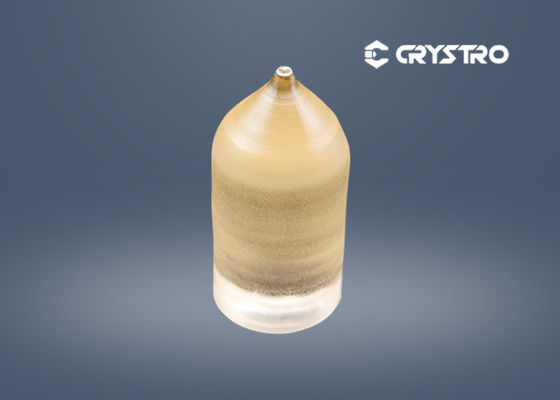

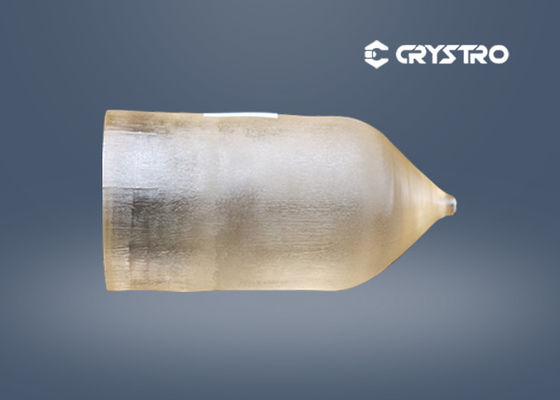

Custom Terbium Gallium Garnet TGG Single Crystal Boule

Custom Terbium Gallium Garnet TGG Single Crystal Boule
Custom Terbium Gallium Garnet TGG Single Crystal Boule Custom Terbium Gallium Garnet TGG Single Crystal Boule Custom Terbium Gallium Garnet TGG Single Crystal Boule

Large Image :  Custom Terbium Gallium Garnet TGG Single Crystal Boule

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTGG-21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic,a=12.355Å
Dimension: MaxΦ101.6 Mm Density: 7.13 G/cm3
Mohs Hardness: 8.0 Refractive Index: 1.954 At 1064nm
Verdet(rad/M/T): 190/134/40@532nm/633nm/1064nm
High Light:

TGG Single Crystal Boule

,

Terbium Gallium Garnet Crystal Boule

,

1064nm TGG Single Crystal Boule

Custom size Low Optical Losses Terbium Gallium Garnet (TGG) Single Crystal Boules



Introduction :

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators( in the range of 400nm-1100nm, excluding 475-500nm). Crystro could offer a large size boule diameter: up to 4 inches.

TGG has many advantages compared to other magneto-optical crystals. It has a less optical loss, lower thermally induced beam distortion, and a twice bigger Verdet constant than a terbium doped glass.



Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2



Specifications :

Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 101.6 mm in diameter



Product details:



Custom Terbium Gallium Garnet TGG Single Crystal Boule 0
