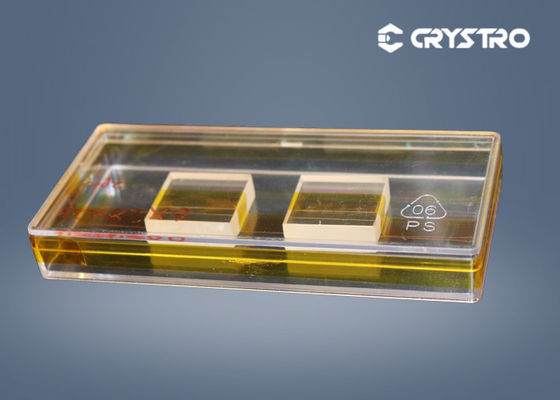

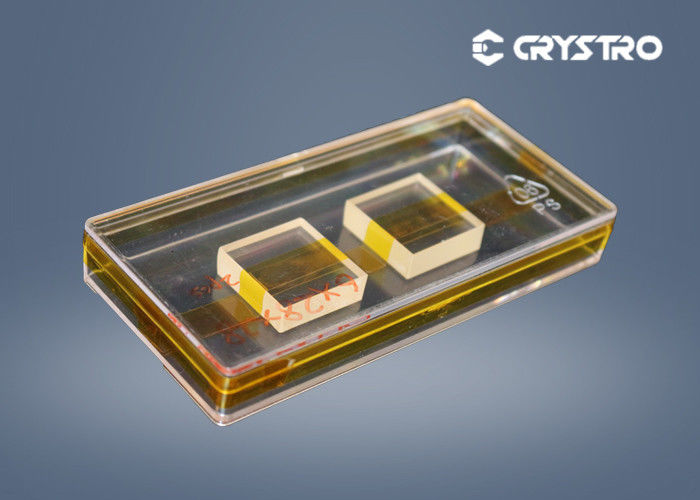

Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet
Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Large Image :  Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: CRTGG-18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic
Density: 7.13g/cm3 Size: D28*28*6 Mm
Mohs Hardness: 8.0 Melting Point: 1725℃
Refractive Index: 1.954 At 1064nm Lattic Parameter: A=12.355Å
High Light:

Single Crystal TGG Blocks

,

28*28*6 TGG Synthetic Garnet

,

Synthetic Terbium Gallium Garnet





Synthetic Garnet Dia 28*28*6 Terbium Gallium Garnet Single TGG Crystal

Introduction :

Terbium gallium garnet (Tb3Ga5O12, TGG) is a crucial category of magneto-optical materials for use in the visible and near-infrared spectral regions((400-470nm and 500-1500nm)). The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm), and high laser damage threshold (> 1 GW/cm2). Therefore, it is an attractive Faraday-rotating crystal suitable for constructing magneto-optical isolators, magneto-optical switches, magneto-optical modulators, and so on, widely used in YAG, Ti-doped sapphire, and other multi-stage amplification, ring type, seed injection laser.


Material Properties :



Chemical Formula

TB3Ga5O12

Lattice Parameter

a=12.355Å

Growth Method

Czochralski

Density

7.13g/cm3

Mohs Hardness

8.0

Melting Point

1725℃

Refractive Index

1.954 at 1064nm





Main Features :

  • Large Size Boule Diameter: up to 4”

  • Extinction Ratio Typical: >35 dB High Grade: >40 dB

  • Verdet Constant 40 rad/T/m at 1064 nm

  • Refractive Index 1.95 at 1064 nm

Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.



Orientation

[111] within ±15 arc min

Wavefront Distortion

<1/8 wave

Extinction Ratio

>35dB

Diameter Tolerance

+0.00mm/-0.05mm

Length Tolerance

+0.2mm/-0.2mm

Chamfer

0.10mm@45º

Flatness

<1/10 wave at 633nm

Parallelism

< 30 arc Seconds

Perpendicularity

< 5 arcmin

Surface Quality

10/5 Scratch/Dig

AR Coating

<0.2%

Large Dimensions of Crystals

 MAX φ 101.6mm (4 inches)
