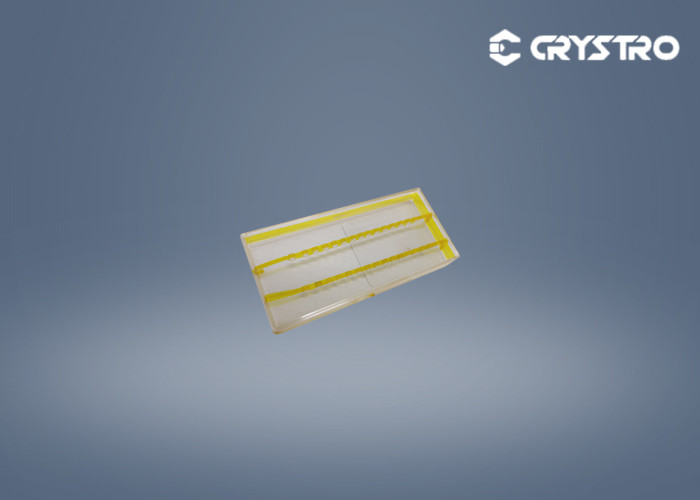

Crystro TGG High Extinction Magneto Optical Crystal For Faraday Isolator

Crystro TGG High Extinction Magneto Optical Crystal For Faraday Isolator
Crystro TGG High Extinction Magneto Optical Crystal For Faraday Isolator

Large Image :  Crystro TGG High Extinction Magneto Optical Crystal For Faraday Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1TGG4*25-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Item Name: TGG Crystal Chemistry Formula: TB3Ga5O12
Measurement: Dia4*25mm Mohs Hardness: 8.0
Melting Temperature: 1725℃ Lattic Parameter: A=12.355Å
High Light:

Crystro Magneto Optical Crystal

,

High Extinction Magneto Optical Crystal

,

High Extinction TGG Crystal

Crystro TGG High Extinction Magneto-Optical Crystal For Faraday Isolator

High quality TGG Magneto-Optical Crystal



Item Introduction:

TGG is now still one of the most common-used magneto-optical crystals within Faraday rotators and isolators because of the excellent optical features along with it. TGG is widely applied within the field of laser technology, optical communication, and optical information processing technology. The following characteristics could explain people's hot welcome regarding TGG sufficiently, high Verdet constant, low light absorption coefficient, high laser damage threshold, and good optical performance.



To keep up with the development of crystal materials, our R&D team spent many efforts and time in resolving the theme of growing large size TGG crystals in the past several years. Finally, in June 2020, we, Crystro, successfully grown TGG crystals with diameter of 100mm. That's really a cheerful achievement.



Features:

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

TGG Transmission Curve:


 Crystro TGG High Extinction Magneto Optical Crystal For Faraday Isolator 0




Crystro TGG rods specification:

We can offer to customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter
