Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator

Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator
Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator

Large Image :  Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRTGG-7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Terbium Gallium Garnet Lattice Structure: Cubic
Density: 7.13g/cm3 Product Size: D10*15 Mm
Mohs Hardness: 8.0 Melting Point: 1725℃
Refractive Index: 1.954 At 1064nm
High Light:

TGG Optic Crystal

,

Terbium Gallium Garnet Optic Crystal

,

Crystro Magnet Crystal

Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator



High damage threshold TGG crystals used for rotators and isolators



Introduction:

Terbium Gallium Garnet (TGG) is of many good features regarding Faraday effects, an kind of magneto-optical crystal with a high level of thermal conductivity when used in optical rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.

Main Features:

  • Customized Diameter: up to 4”
  • High Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • High Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm
  • Low Optical Losses: <0.1%/cm
  • High thermal conductivity: 7.4W m-1K-1
  • High laser damage threshold: >1GW/cm2



Crystro TGG rods specification:

Crystro could offer custmization service regarding the size of TGG crystal for our customers.



Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter

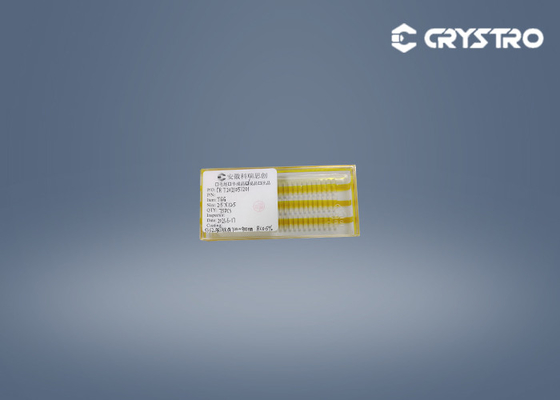

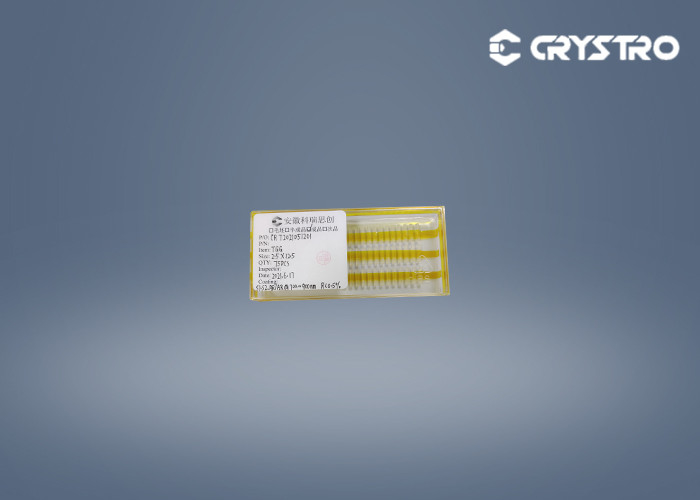

Product Picture:

Crystro TGG Magnet Optic Crystal For Faraday Rotator Isolator 0
