Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chromium Doped Ytterium Aluminum Garnet | Chemical Formula: | Cr4+:Y3Al5O12 |
|---|---|---|---|
| Crystal Structure: | Cubic Garnet | Density: | 4.56 G/cm3 |
| Mohs Hardness: | 8.5 | Damage Thershold: | ＞500MW/cm² |
| Lattic Parameter: | A=12.01Å | Refractive Index: | 1.82@1064 Nm |
| Thermal Conductivity: | 12.13 W/m/K | ||
| High Light: | SGS Nd YAG Crystal,Yb Doped Nd YAG Crystal,High Chemical Stability Nd YAG Crystal |
||
Introduction :

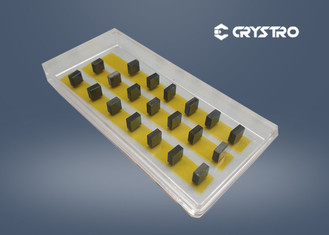

Cr: YAG(Cr: Y3Al5012) crystals are excellent for passive Q-switching diode-pumped or lamp-pumped Nd: YAG, Nd: YLF Yb: YAG, or other Nd and Yb doped lasers at wavelengths from 1.0 to 1. 2mm. Because they are chemically stable, durable, UV resistant, have good thermal conductivity, have a high damage threshold(500mW/cm²), and ease of operation, they will replace traditional materials such as LiF, organic dye, and color centers.
Main Advantages :
Material Properties :
| Chemical Formula | Cr4+: Y3Al5O12 | Orientation Tolerence | < 0.5° |
| Refractive Index | 1.83 | Surface Quality | 10/5 |
| Thermal Expansion | <111> 7.8*10-6°C@25°C | Parallelism | ＜10″ |
| Specific Heat Capacity | 0.59(J·g-1·K-1) | Perpendicularity | ＜5′ |
