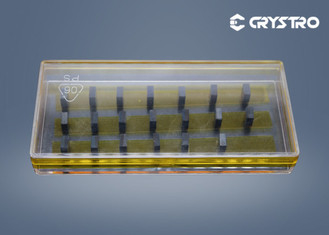

Cr4+ YAG Q Switching Material Yb Doped Nd YAG Crystal Cubic Garnet

Cr4+ YAG Q Switching Material Yb Doped Nd YAG Crystal Cubic Garnet
Cr4+ YAG Q Switching Material Yb Doped Nd YAG Crystal Cubic Garnet

Large Image :  Cr4+ YAG Q Switching Material Yb Doped Nd YAG Crystal Cubic Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRCRYAG-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Chromium Doped Ytterium Aluminum Garnet Chemical Formula: Cr4+:Y3Al5O12
Crystal Structure: Cubic Garnet Density: 4.56 G/cm3
Mohs Hardness: 8.5 Damage Thershold: >500MW/cm²
Lattic Parameter: A=12.01Å Refractive Index: 1.82@1064 Nm
Thermal Conductivity: 12.13 W/m/K
High Light:

Cubic Garnet Nd YAG Crystal

,

Switching Material Nd YAG Crystal

,

High Damage Threshold Nd YAG Crystal

Cr4+: YAG Crystal Passive Q-switching Material For Nd: YAG And Other Yb-doped Lasers



Introduction :



Cr: YAG(Cr: Y3Al5012) crystals are excellent for passive Q-switching diode-pumped or lamp-pumped Nd: YAG, Nd: YLF Yb: YAG, or other Nd and Yb doped lasers at wavelengths from 1.0 to 1. 2mm. Because they are chemically stable, durable, UV resistant, have good thermal conductivity, have a high damage threshold(500mW/cm²), and ease of operation, they will replace traditional materials such as LiF, organic dye, and color centers.





Main Advantages :

  • High damage threshold(>500MW/cm2)
  • High chemical stability and reliability
  • Long lifetime
  • good thermal conductivity



Material Properties :



  Chemical Formula  Cr4+: Y3Al5O12  Orientation Tolerence  < 0.5°
 Refractive Index  1.83  Surface Quality  10/5
 Thermal Expansion  <111> 7.8*10-6°C@25°C  Parallelism <10″
 Specific Heat Capacity  0.59(J·g-1·K-1)  Perpendicularity <5′



Cr4+ YAG Q Switching Material Yb Doped Nd YAG Crystal Cubic Garnet 0
