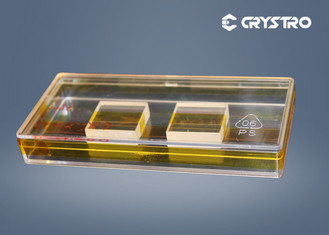

Dia 28x28x6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Dia 28x28x6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet
Dia 28x28x6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Large Image :  Dia 28x28x6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: CRTGG-18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Terbium Gallium Garnet Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Crystal Structure: Cubic
Density: 7.13g/cm3 Size: D28*28*6 Mm
Mohs Hardness: 8.0 Melting Point: 1725℃
Refractive Index: 1.954 At 1064nm Lattic Parameter: A=12.355Å
High Light:

Dia 28x28x6 Single Crystal

,

TGG Blocks Single Crystal

,

TGG Terbium Gallium Garnet Blocks

Dia 28*28*6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet



Synthetic Garnet Dia 28*28*6 Terbium Gallium Garnet Single TGG Crystal

Introduction :

Terbium gallium garnet (Tb3Ga5O12, TGG) is a crucial category of magneto-optical materials for use in the visible and near-infrared spectral regions((400-470nm and 500-1500nm)). The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm), and high laser damage threshold (> 1 GW/cm2). Therefore, it is an attractive Faraday-rotating crystal suitable for constructing magneto-optical isolators, magneto-optical switches, magneto-optical modulators, and so on, widely used in YAG, Ti-doped sapphire, and other multi-stage amplification, ring type, seed injection laser.


Material Properties :



Chemical Formula

TB3Ga5O12

Lattice Parameter

a=12.355Å

Growth Method

Czochralski

Density

7.13g/cm3

Mohs Hardness

8.0

Melting Point

1725℃

Refractive Index

1.954 at 1064nm





Main Features :

  • Large Size Boule Diameter: up to 4”

  • Extinction Ratio Typical: >35 dB High Grade: >40 dB

  • Verdet Constant 40 rad/T/m at 1064 nm

  • Refractive Index 1.95 at 1064 nm

Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.



Orientation

[111] within ±15 arc min

Wavefront Distortion

<1/8 wave

Extinction Ratio

>35dB

Diameter Tolerance

+0.00mm/-0.05mm

Length Tolerance

+0.2mm/-0.2mm

Chamfer

0.10mm@45º

Flatness

<1/10 wave at 633nm

Parallelism

< 30 arc Seconds

Perpendicularity

< 5 arcmin

Surface Quality

10/5 Scratch/Dig

AR Coating

<0.2%

Large Dimensions of Crystals

 MAX φ 101.6mm (4 inches)


















Product Details:

Dia 28x28x6 Single Crystal TGG Blocks Synthetic Terbium Gallium Garnet 0
