| Product Name: | Terbium Gallium Garnet | Chemical Formula: | TB3Ga5O12 |
|---|---|---|---|
| Growth Method: | Czochralski | Crystal Structure: | Cubic,a=12.355Å |
| Dimension: | MaxΦ101.6 Mm | Density: | 7.13 G/cm3 |
| Mohs Hardness: | 8.0 | Refractive Index: | 1.954 At 1064nm |
| Verdet(rad/M/T): | 190/134/40@532nm/633nm/1064nm | ||
| High Light: | Custom Terbium Gallium Garnet,TGG Single Crystal Boule,Custom Size Terbium Gallium Garnet |
||

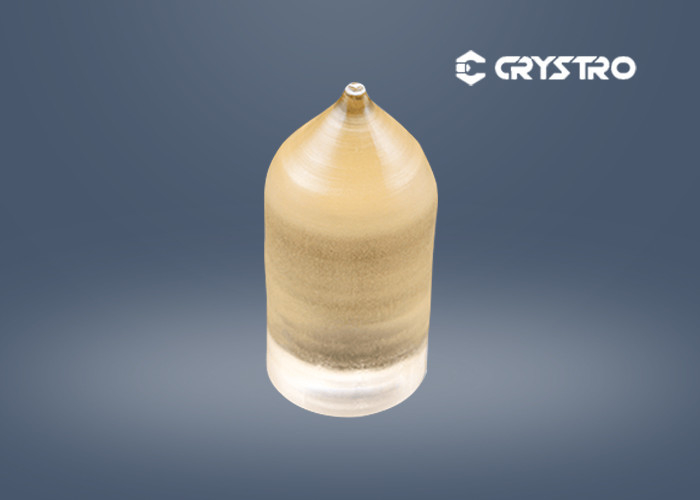

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators( in the range of 400nm-1100nm, excluding 475-500nm). Crystro could offer a large size boule diameter: up to 4 inches.
TGG has many advantages compared to other magneto-optical crystals. It has a less optical loss, lower thermally induced beam distortion, and a twice bigger Verdet constant than a terbium doped glass.
1. Large Verdet Constant:35 Rad T-1m-1
2. Low Optical Losses : <0.1%/cm
3. High thermal conductivity: 7.4W m-1K-1
4. High laser damage threshold :>1GW/cm2
| Orientation | [111] within ±15 arc min |
| Wavefront Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | 101.6 mm in diameter |
