D10x15 Mm TGG Crystals Magneto Optical Material Low Optical Loss

Low Optical Loss Dia 10*15 Mm TGG Crystals Magneto Optical Material

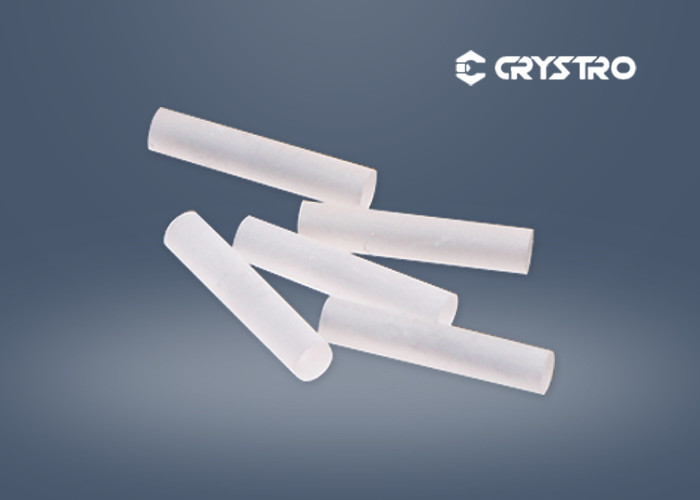

Low Optical Loss Magneto Optical Material Terbium Gallium Garnet TGG Crystal Rods Dia 10*15 mm

Introduction :

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet ,an magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators.It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.

Main Features :

• Large Size Boule Diameter: up to 4”
• Extinction Ratio Typical: >35 dB High Grade: >40 dB
• Verdet Constant 40 rad/T/m at 1064 nm
• Refractive Index 1.95 at 1064 nm

Main Advantages :

1. Large Verdet Constant :35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity : 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2

Crystro TGG rods specification :

We can offer customize TGG crystal sizes upon your request.
