Magneto Optical Material TGG Single Crystal Rods D3.8x14mm

Name: Magneto Optical Material TGG Single Crystal Rods D3.8x14mm
Brand: Crystro
SKU: 1TGG3.8*14-E
Rating: 4.7 (158 reviews)

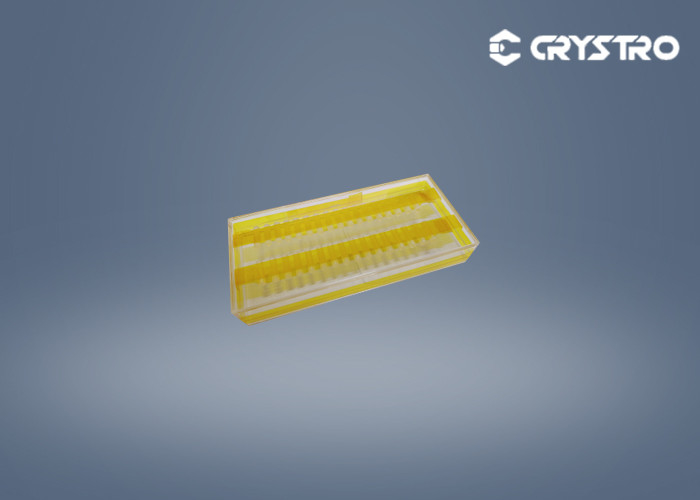

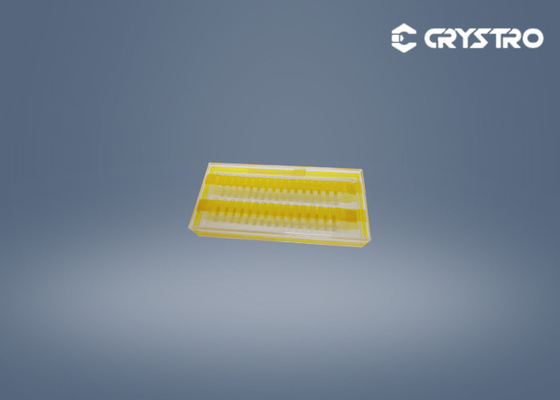

Large Image : Magneto Optical Material TGG Single Crystal Rods D3.8x14mm

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	ROHS
Model Number:	1TGG3.8*14-E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

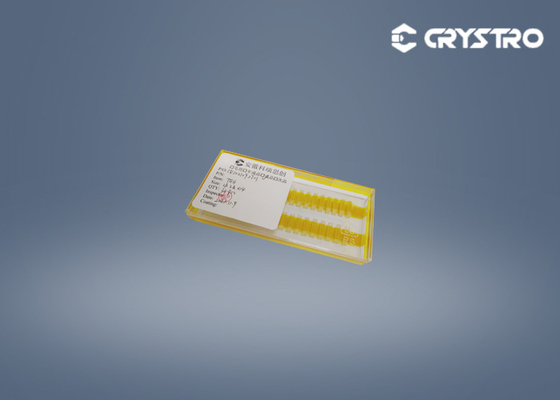

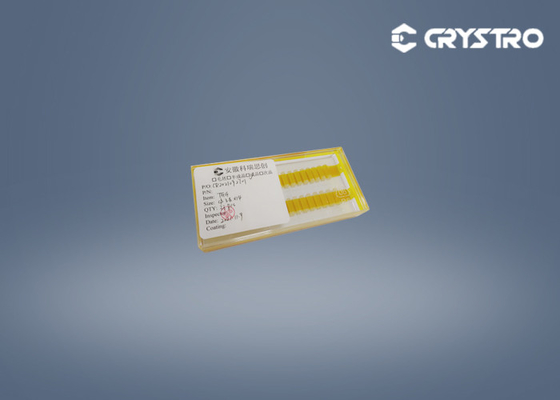

Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Product Name:	TGG Rods	Chemical Formula:	TB3Ga5O12
Growth Method:	Czochralski	Length:	14mm
Diameter:	3.8mm	Parallelism:	＜30''
Perpendicularity:	＜15’	Surface Quality:	10/5
Wave-Front Distortion:	＜λ/8	Flatness:	<λ/10 Wave At 633nm
High Light:	Magneto Optical TGG Crystal , TGG Single Crystal Rods , 14mm Length TGG Crystal

D3.8*14mm Magneto-Optical Material TGG Single Crystal Rods

Introduction :

TGG single crystal has a large magneto-optical constant, low light loss, high thermal conductivity, and high laser damage threshold. It is widely used in YAG, Ti-doped sapphire, and other multi-stage amplification, ring-type, seed-injected laser dishes. TGG single crystal is the best magneto-optical material for making Faraday rotators and isolators

TGG has twice the Verdet constant of a Terbium-doped glass. The thermal conductivity of TGG crystal is an order of magnitude greater than typical glass. Optical losses are lower for TGG than Tb-doped glasses. The combination of the above factors makes TGG better suited to high average power applications.

Main Features :

Large Size Boule Diameter: up to 4”
Extinction Ratio Typical: >35 dB High Grade: >40 dB
Verdet Constant 40 rad/T/m at 1064 nm
Refractive Index 1.95 at 1064 nm

Transmission Curve:

Magneto Optical Material TGG Single Crystal Rods D3.8x14mm 0

Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2

Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.

Orientation	[111] within ±15 arc min
Wavefront Distortion	<1/8 wave
Extinction Ratio	>35dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 5 arcmin
Surface Quality	10/5 Scratch/Dig
AR Coating	<0.2%
Large Dimensions of Crystals	2.0--100 mm in diameter
