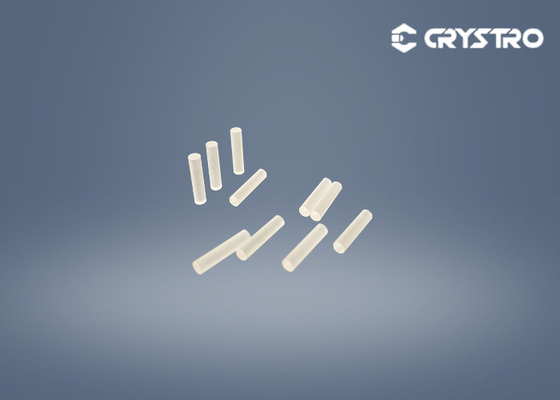

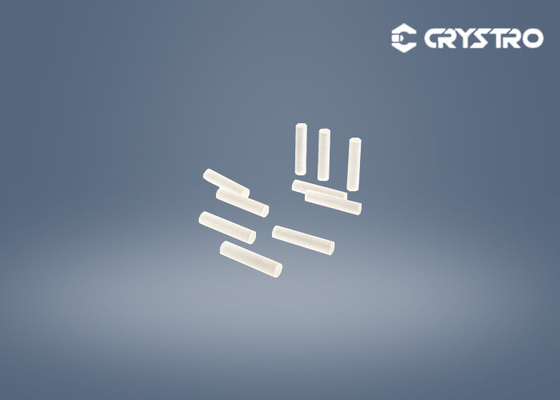

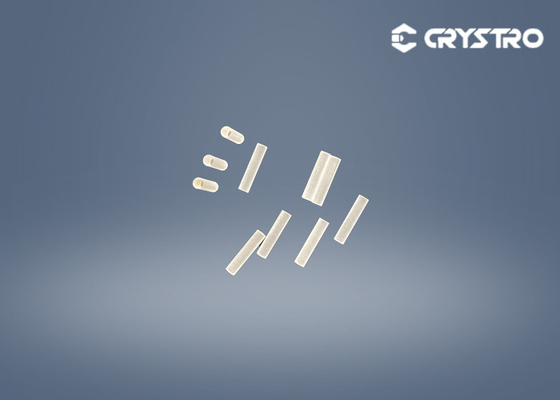

Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators

Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators
Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators

Large Image :  Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1TGG2.3*10-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: TGG Rods Chemical Formula: TB3Ga5O12
Growth Method: Czochralski Length: 2.3mm
Diameter: 10mm Parallelism: <30''
Perpendicularity: <15’ Crystal Structure: Cubic
Flatness: <λ/10 Wave At 633nm
High Light:

10mm TGG Rod

,

TB3Ga5O12 Magneto Optical TGG Rods

,

TB3Ga5O12 Isolators TGG Crystals



Introduction :





In recent years, terbium gallium garnet (TGG) crystals have attracted widespread attention due to their good chemical stability, mechanical hardness, and excellent magneto-optical effect.
It has a small absorption loss and has a large magneto-optical coefficient, but the transmittance in the visible light region and the laser damage threshold is low, which limits its wider application.
TGG crystal has the characteristics of a wide transmission area and a high laser damage threshold. It is a key element to realize a wide-band, tunable (wavelength), high-power laser optical isolator.



Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Transmission Curve:

Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators 0



Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm2





Crystro TGG rods specification :

We can offer to customize TGG crystal sizes upon your request.



Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arcmin
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter































Product Details :

Dia 2.3*10mm Magneto Optical TGG Rods TGG Crystals For Isolators 1
