Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet

Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet
Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet

Large Image :  Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: RoHS
Model Number: 1TGG5*5*15-B1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: TGG Crystal Chemical Formula: TB3Ga5O12
Size: 5*5*15 Mm Polish: Double-sided Polishing
Growth Method: Czochralski Density: 7.13g/cm3
Mohs Hardness: 8.0 Melting Point: 1725℃
Lattic Parameter: A=12.355Å Refractive Index: 1.954 At 1064nm
High Light:

Double Sided Polishing TGG Crystal

,

Double Sided Polishing TGG rod

,

Czochralski growth TGG crystal








Introduction :

TGG single crystal has a large magneto-optical constant, low light loss, high thermal conductivity, and a high laser damage threshold. It is widely used in YAG, Ti-doped sapphire, and other multi-stage amplification, ring-type, seed-injected laser dishes.
TGG single crystal is the best magneto-optical material for making Faraday rotators and isolators, and the applicable wavelength is 400~1100 nm (excluding 470 500 nm).



Material Properties :



Chemical FormulaTB3Ga5O12
Lattice Parametera=12.355Å
Growth MethodCzochralski
Density7.13g/cm3
Mohs Hardness8.0
Melting Point1725℃
Refractive Index

1.954 at 1064nm












Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Crystro TGG rods specification :

We can offer customized TGG crystal sizes upon your request.



Orientation[111] within ±15 arc min
Wavefront Distortion<1/8 wave
Extinction Ratio>35dB
Diameter Tolerance+0.00mm/-0.05mm
Length Tolerance+0.2mm/-0.2mm
Chamfer0.10mm@45º
Flatness<1/10 wave at 633nm
Parallelism< 30 arc Seconds
Perpendicularity< 5 arcmin
Surface Quality10/5 Scratch/Dig
AR Coating<0.2%
Large Dimensions of Crystals2.0--100 mm in diameter

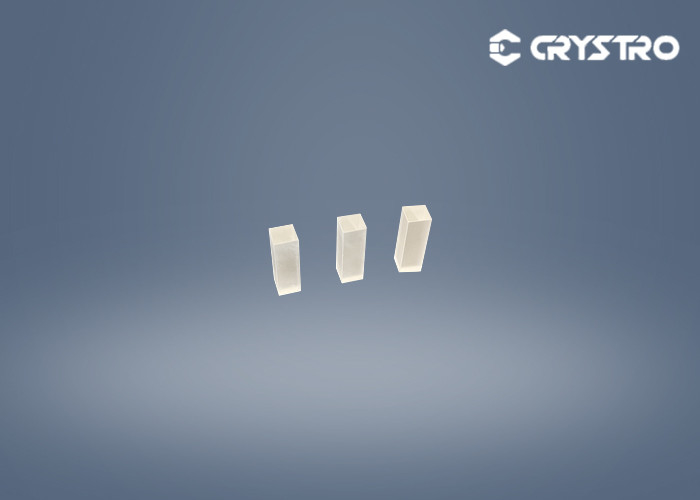

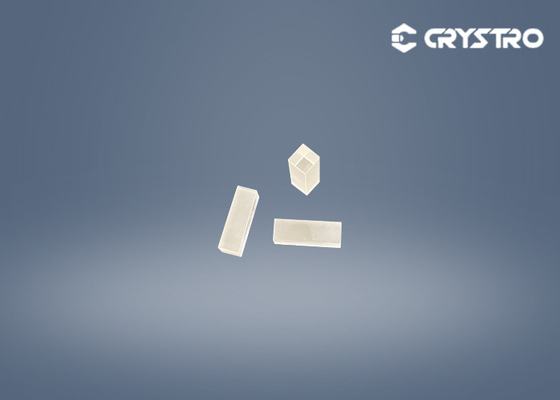

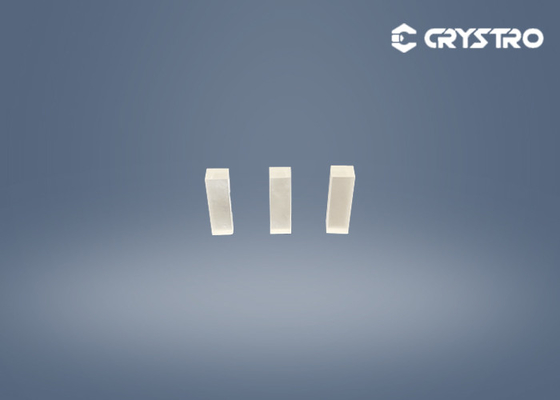

Product Picture:

Double Sided Polishing Magneto Optical TGG Crystal Terbium Gallium Garnet 0
