8mm High Thermal Conductivity Magneto Optical Terbium Gallium Garnet Crystal

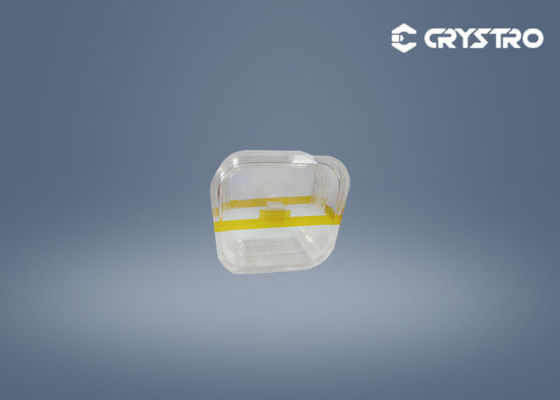

8mm High Thermal Conductivity  Magneto Optical Terbium Gallium Garnet Crystal

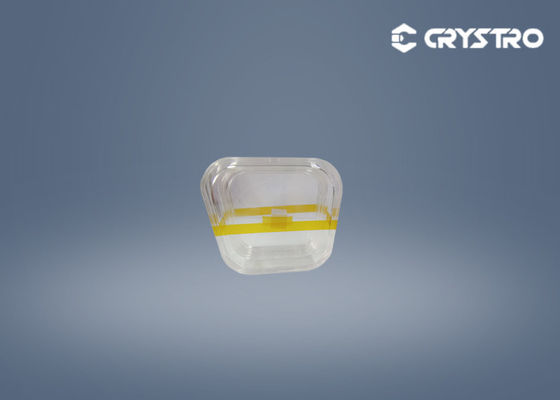

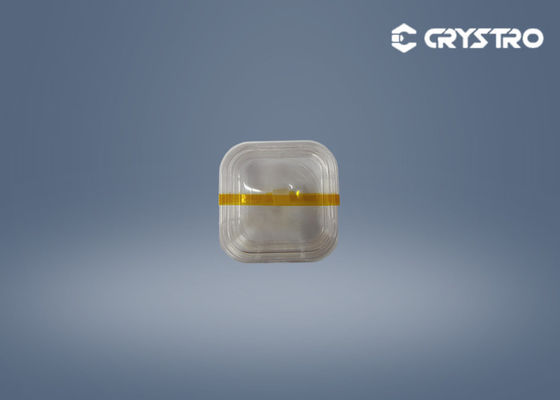

8mm High Thermal Conductivity  Magneto Optical Terbium Gallium Garnet Crystal 8mm High Thermal Conductivity  Magneto Optical Terbium Gallium Garnet Crystal 8mm High Thermal Conductivity  Magneto Optical Terbium Gallium Garnet Crystal

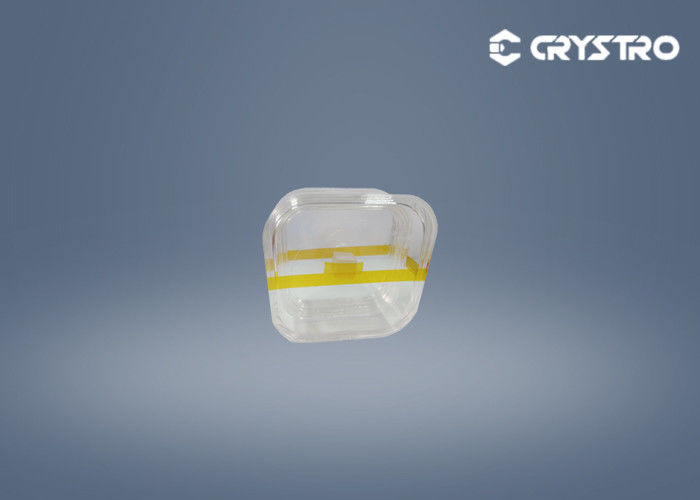

Large Image :  8mm High Thermal Conductivity Magneto Optical Terbium Gallium Garnet Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1TGG8*8*8-B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Chemical Formula: TB3Ga5O12 Orientation: [111]
Size: 8*8*8 Mm Growth Method: Czochralski
Crystal Structure: Cubic Density: 7.13g/cm3
Mohs Hardness: 8.0 Melting Point: 1725℃
High Light:

8mm Terbium Gallium Garnet crystal

,

High Thermal Conductivity TGG Crystal

,

8mm TB3Ga5O12 crystal






8*8*8mm Terbium Gallium Garnet Single Crystal

Introduction :

TGG crystal is a crystal material with excellent magneto-optical properties in the visible and near-infrared light regions. In the short wavelength range, it has a high Verdet constant, low light absorption coefficient, high thermal conductivity, high laser damage threshold, and excellent optical performance.
In recent years, the growth of large-size and high-quality TGG crystals has always been a hot research topic in the field of crystal materials. With the unremitting efforts of the professional R&D team, Crystro has successfully grown TGG crystals with a diameter of 100mm in June 2020.



Material Properties :



Chemical FormulaTB3Ga5O12
Lattice Parametera=12.355Å
Growth MethodCzochralski
Density7.13g/cm3
Mohs Hardness8.0
Melting Point1725℃
Refractive Index

1.954 at 1064nm












Main Features :

  • Large Size Boule Diameter: up to 4”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm



Crystro TGG rods specification :

We can customize TGG crystal sizes upon your request.



Orientation[111] within ±15 arc min
Wavefront Distortion<1/8 wave
Extinction Ratio>35dB
Diameter Tolerance+0.00mm/-0.05mm
Length Tolerance+0.2mm/-0.2mm
Chamfer0.10mm@45º
Flatness<1/10 wave at 633nm
Parallelism< 30 arc Seconds
Perpendicularity< 5 arcmin
Surface Quality10/5 Scratch/Dig
AR Coating<0.2%
Large Dimensions of Crystals2.0--100 mm in diameter
