| Name: | Terbium Gallium Garnet | Chemical Formula: | Tb3Ga5O12 |
|---|---|---|---|
| Growth Method: | Czochralski | Crystal Structure: | Cubic,a=12.355Å |

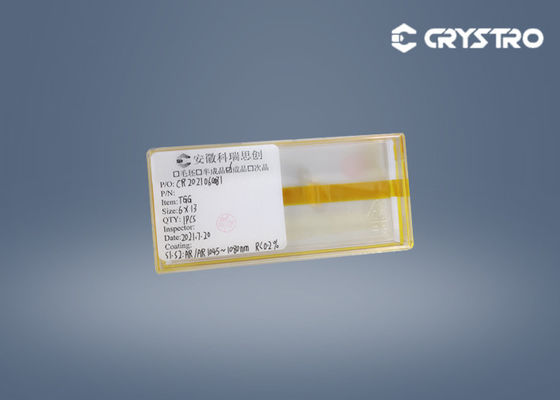

| Dimensions: | 6*13mm | Density: | 7.13g/cm3 |
| Mohs Hardness: | 8.0 | Melting Point: | 1725℃ |
| Refractive Index: | 1.954 At 1064nm | Verdet(rad/M/T): | 190/134/40@532nm/633nm/1064nm |
| High Light: | magneto optical TGG Rods,low light absorptio TGG Crystal,low light absorptio TGG Rods |
||
TGG crystal is a crystal material with excellent magneto-optical properties in the visible and near-infrared light regions. In the short wavelength range, it has a high Verdet constant, low light absorption coefficient, high thermal conductivity, high laser damage threshold, and excellent optical performance.
All these advantages make TGG crystal an excellent material for constructing Faraday effect equipment and making up for the deficiency of YIG crystal in the visible and near-infrared spectrum.
| Orientation | [111] within ±15 arc min |
| Wavefront Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | 2.0--101.4 mm in diameter |
1. Large Verdet Constant:35 Rad T-1m-1
2. Low Optical Losses : <0.1%/cm
3. High thermal conductivity: 7.4W m-1K-1
4. High laser damage threshold :>1GW/cm2
