Product Details:
Payment & Shipping Terms:
|

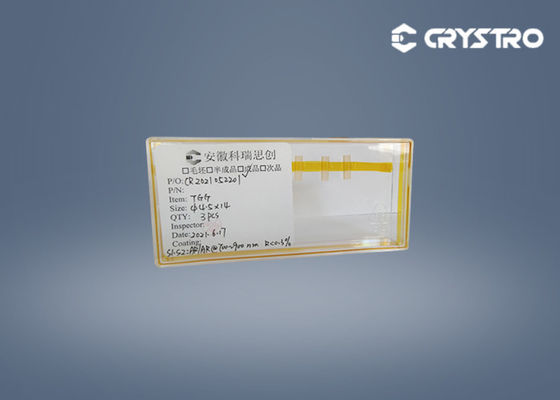

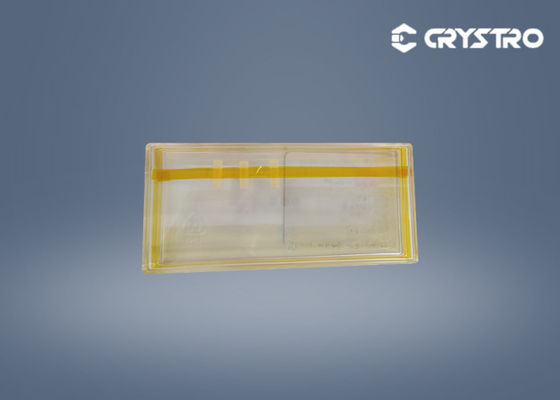

| Chemical Formula: | TB3Ga5O12 | Dimensions: | 4.5*14mm |
|---|---|---|---|
| Orientation: | 111 | Crystal Structure: | Cubic, A=12.355Å |
| Refractive Index: | 1.954 At 1064nm | Density: | 7.13g/cm3 |
| Mohs Hardness: | 8.0 | Melting Point: | 1725℃ |
| High Light: | 14mm tgg crystal,Optical Isolator tgg crystal,Optical Isolator Terbium Gallium Garnet |
||
Tb3Ga5O12 (TGG, terbium gallium garnet) has the advantages of high Verdet constant, low transmission loss, high thermal conductivity, high laser damage threshold, and easy growth of large-size crystals in the visible and near-infrared regions. It is the best magneto-optical material used to make Faraday rotators and isolators in 400-1100nm,(excluding 470nm-500nm), widely used in YAG, Ti-doped sapphire, and other multi-stage amplification, ring, and seed injection lasers.
We can offer to customize TGG crystal sizes upon your request.
| Orientation | [111] within ±15 arc min |
| Wavefront Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | 2.0--100 mm in diameter |
