Product Details:
Payment & Shipping Terms:
|
| Name: | Ce:LUAG | Crystal Structure: | Cubic |
|---|---|---|---|
| Dimensions: | 5*5*5mm | Density: | 6.73 G/cm3 |
| Hardness: | 8.5 | Melting: | 1970℃ |
| Thermal Conductivity(W/℃cm,25℃): | 0.08 | Expanding Coefficient(10-6/℃): | 8.8 |
| Refractive Index(λ=1.079μm): | 1.84 | Doping Level: | 0.3% |
| High Light: | 5x5x5mm LUAG Crystal,LUAG Scintillation Single Crystal,Cubic LUAG Crystal |
||

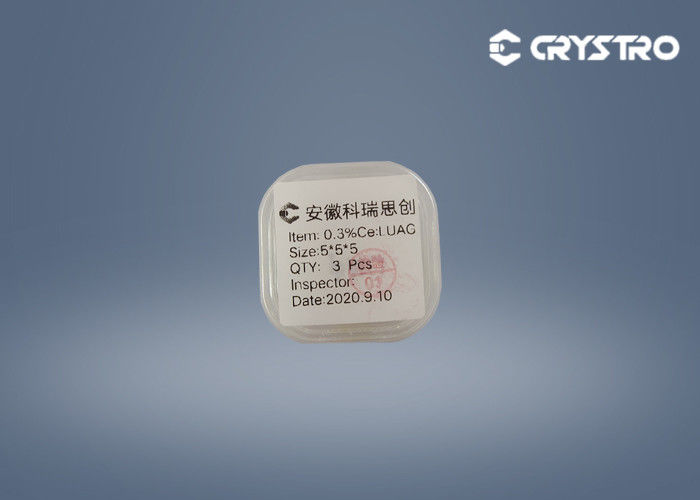

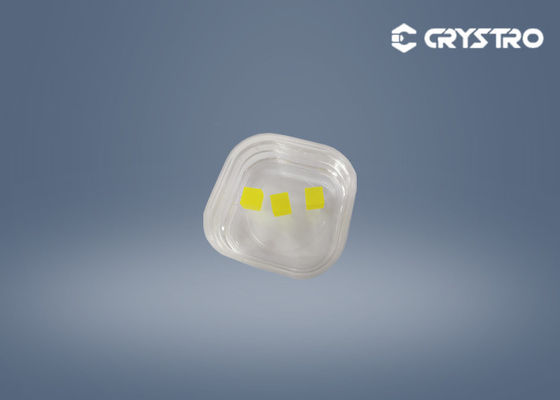

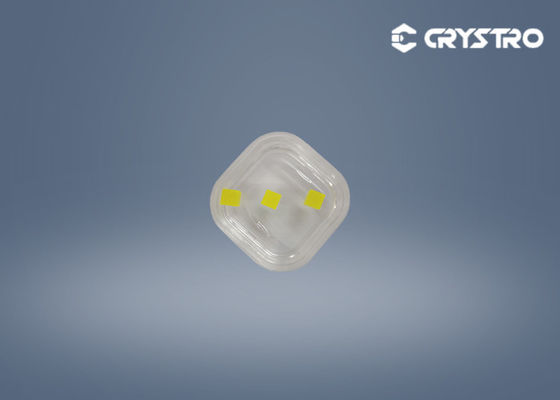

5*5*5mm Doping level 0.3%Ce: LUAG Scintillation Single Crystal
Ce: LuAG (Cerium Lutetium Aluminum Garnet activated by Cerium ) is a scintillating material used for laser & LED lighting, medical imaging (CT, PET, and SPET), high-energy particle detectors. The basic advantages of this crystal are high density, fast decay (80ns) and emission peaks at 510nm, and good chemical, mechanical, and temperature stability.
| Property | Ce: LuAG |
| Hardness | 8.5 |
| Density | 6.73 g/cm3 |
| Thermal conductivity(W/℃cm,25℃) | 0.08 |
| expanding coefficient(10-6/℃) | 8.8 |
| Refractive index(λ=1.079μm) | 1.84 |
| Emission peak (nm) | 510 |
| Light yield (Photons•Mev-1) | 15000 |
| Decay time(ns) | 80 |
| Energy resolution | <8% |
| Orientation Tolerence | <0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Parallel | 10'' |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| Maximum dimensions | dia 60 mm |
