Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods

Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods
Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods

Large Image :  Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ROHS
Model Number: 1TGG3.8*15-F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Name: TGG Crystal Rods Diameter: 3.8*15mm
Chemical Formula: TB3Ga5O12 Growth Method: Czochralski
Density: 7.13g/cm3 Mohs Hardness: 8.0
Melting Point: 1725℃ Refractive Index: 1.954 At 1064nm
Lattic Parameter: A=12.355Å Verdet(rad/M/T): 190/134/40@532nm/633nm/1064nm
High Light:

ROHS tgg rods

,

3.8mm tgg rods

,

3.8mm terbium gallium garnet




Diameter 3.8*8mm Terbium Gallium Garnet Crystal TGG Rods



Introduction :

Terbium Gallium Garnet (TGG) is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.TGG has many advantages compared to other magneto-optical crystals. It has a less optical loss, lower thermally induced beam distortion, and twice bigger Verdet constant than a terbium doped glass.



Crystro offers :

Orientation [111] within ±15 arc min
Wavefront Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--100 mm in diameter




























Main Features :

  • Large Size Boule Diameter: up to 4 Inches
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

Main Advantages :

1. Large Verdet Constant:35 Rad T-1m-1

2. Low Optical Losses : <0.1%/cm

3. High thermal conductivity: 7.4W m-1K-1

4. High laser damage threshold :>1GW/cm

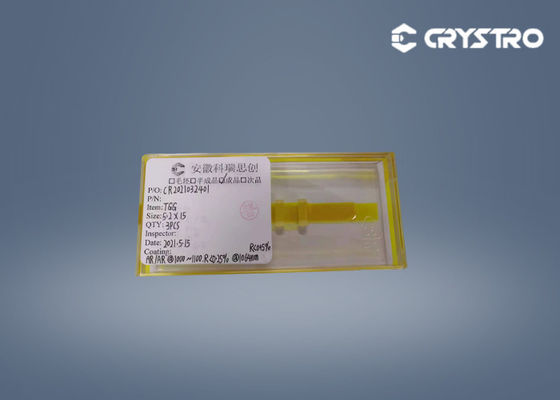

Product Picture:

Large Verdet Constant Diameter 3.8mm Terbium Gallium Garnet Crystal TGG Rods 0
