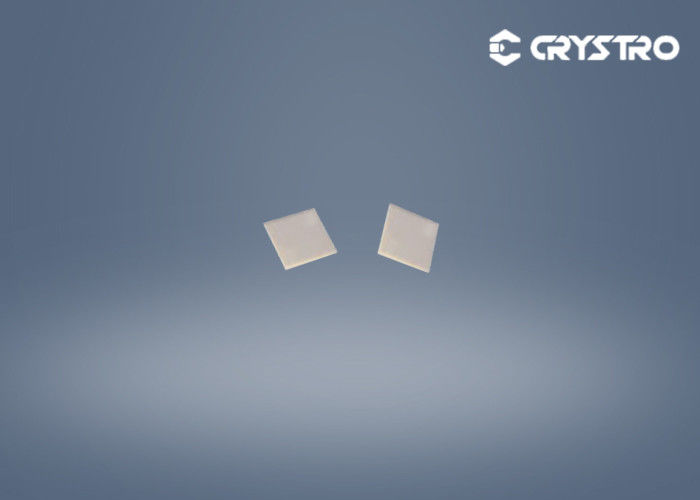

10X10X0.5mm Magneto Optical TGG Crystal Single Substrate Synthetic Garnet

Name: 10X10X0.5mm Magneto Optical TGG Crystal Single Substrate Synthetic Garnet
Brand: Crystro
SKU: 1TGG10*10*0.5-B
Rating: 4.8 (183 reviews)

Large Image : 10X10X0.5mm Magneto Optical TGG Crystal Single Substrate Synthetic Garnet

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	ROHS
Model Number:	1TGG10100.5-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	Terbium Gallium Garnet	Chemical Formula:	Tb₃Ga₅O₁₂
Size:	10100.5mm	Orientation:	(111)
Growth Method:	Czochralski	Density:	7.13g/cm3
Mohs Hardness:	8.0	Melting Point:	1725℃
Refractive Index:	1.954 At 1064nm	Lattic Parameter:	A=12.355Å
High Light:	0.5mm thickness magneto optical crystal , TGG magneto optical crystal , 0.5mm tgg crystal

10 X 10 X0.5mm TGG Magneto-Optical Crystal Single Crystal Substrate

Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.

Features :

Large Size Boule Diameter: up to 4”
Extinction Ratio Typical: >35 dB High Grade: >40 dB
Verdet Constant 40 rad/T/m at 1064 nm
Refractive Index 1.95 at 1064 nm

Properties :

Chemical Formula	TB₃Ga₅O₁₂
Lattice Parameter	a=12.355Å
Growth Method	Czochralski
Density	7.13g/cm³
Mohs Hardness	8.0
Melting Point	1725℃
Refractive Index	1.954 at 1064nm

Transmission Curve:

10X10X0.5mm Magneto Optical TGG Crystal Single Substrate Synthetic Garnet 0

Crystro offers :

We can offer to customize TGG crystal sizes upon your request.

Orientation	[111] within ±15 arc min
Wavefront Distortion	<1/8 wave
Extinction Ratio	>35dB
Diameter Tolerance	+0.00mm/-0.05mm
Length Tolerance	+0.2mm/-0.2mm
Chamfer	0.10mm@45º
Flatness	<1/10 wave at 633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 5 arcmin
Surface Quality	10/5 Scratch/Dig
AR Coating	<0.2%
Large Dimensions of Crystals	Maxφ101.6mm (4 inches)

Product Details :

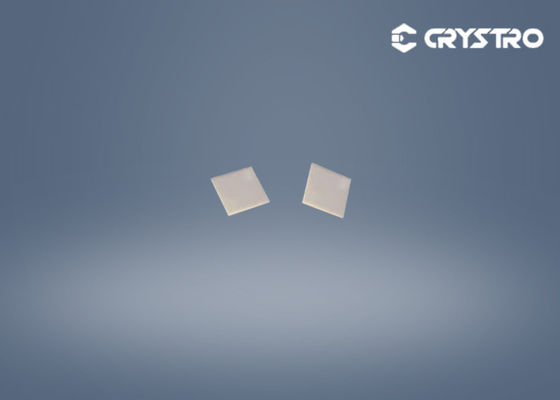

10X10X0.5mm Magneto Optical TGG Crystal Single Substrate Synthetic Garnet 1
