3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal

3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal
3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal 3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal

Large Image :  3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: 1SGGG76.2*1-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Production Name: Substituted GGG Dimensions: Dia 76.2*1mm
Polish: Double Sides Lattic Parameter: A=12.497Å
Growth Method: Czochralski Density: 7.09g/cm3
Mohs Hardness: 7.5 Melting Point: 1730℃
High Light:

Epitaxial Growth SGGG Crystal

,

3 Inch SGGG Crystal

,

SGGG substituted gadolinium gallium garnet










3-inch SGGG Gadolinium Gallium Garnet Substrate for epitaxial growth





Introduction :



Substituted gadolinium gallium garnet (SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films. Crystro can offer substrate with well lattice parameters and surface quality in large diameters up to 4’’.









Main Properties:



Name Substituted GGG
Crystal Structure Cubic
Lattice Parameter a=12.497Å
Growth Method Czochralski
Density 7.09g/cm3
Mohs Hardness 7.5
Melting Point 1730℃
Refractive Index 1.954 at 1064nm





















CRYSTRO Offers:

Size MAX Dia 4 inches
Thickness 0.5mm/ 1mm
Polishing Single or Double side
Orientation <111>±0.2°
Edge Orientation accuracy 2°(special in 1°)
Cutting Special size and orientation are available upon request
Ra ≤1nm

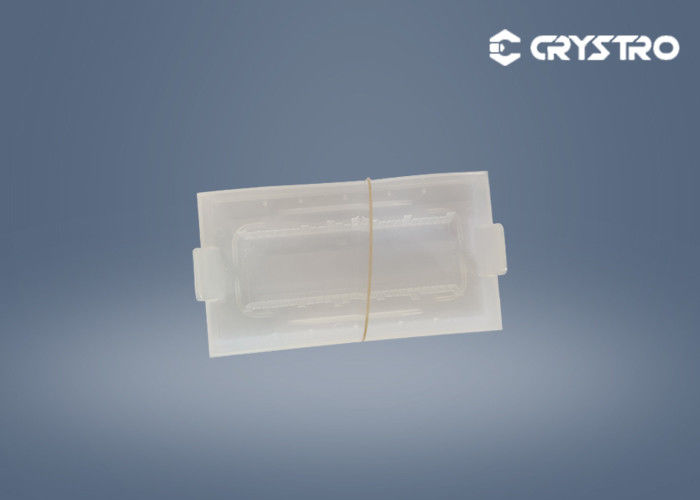

Package
100 clean bag,1000 clean bag

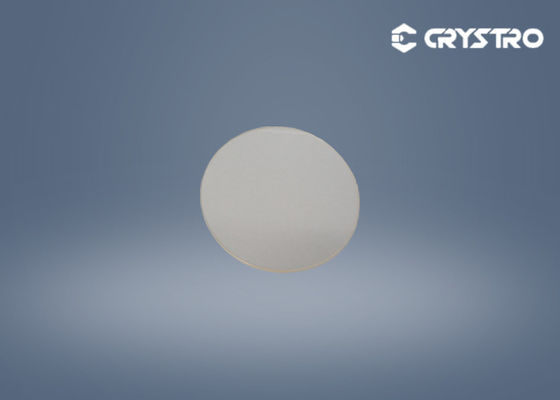

Pictures:

3 Inch Liquid Phase Epitaxial Growth Gadolinium Gallium Garnet SGGG Crystal 0
