Low Optical Loss High Thermal Conductivity Single Crystal Wafer SGGG Crystal

Name: Low Optical Loss High Thermal Conductivity Single Crystal Wafer SGGG Crystal
Brand: Crystro
SKU: CRSGGG-8
Rating: 4.8 (192 reviews)

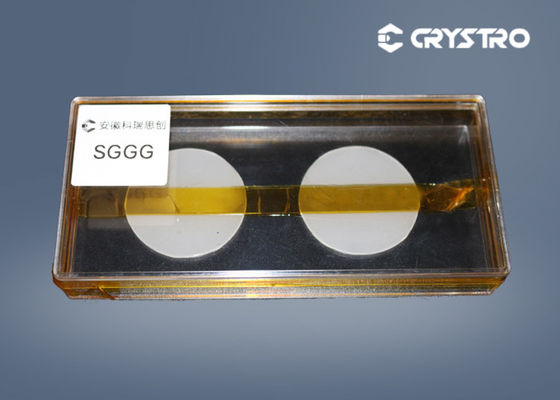

Large Image : Low Optical Loss High Thermal Conductivity Single Crystal Wafer SGGG Crystal

Product Details:

Place of Origin:	China
Brand Name:	Crystro
Certification:	SGS
Model Number:	CRSGGG-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Transparent clean box
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 pcs per week

Contact Now

Detailed Product Description

Name:	SGGG Crystal	Density:	7.09g/cm3
Mohs Hardness:	7.5	Melting Point:	1730℃
Lattic Parameter:	A=12.497Å	Refractive Index:	1.954 At 1064nm
Size:	Dia 40 Mm	Polish:	SSP OR DSP
High Light:	Low Optical Loss SGGG Crystal , High Thermal Conductivity SGGG Crystal , Single Crystal Wafer SGGG

Low Optical Loss High Thermal Conductivity SGGG Single Crystal Wafer

Introduction :

SGGG and GGG are used as substrates for liquid epitaxy. Substituted gadolinium gallium garnet (SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films.

Main Advantages:

Low optical loss
High thermal conductivity
The high laser damage threshold

Main Properties:

Name	Substituted GGG
Crystal Structure	Cubic
Lattice Parameter	a=12.497Å
Growth Method	Czochralski
Density	7.09g/cm³
Mohs Hardness	7.5
Melting Point	1730℃
Refractive Index	1.954 at 1064nm

CRYSTRO Offers:

SIze	MAX Dia 4 inches
Thickness	0.5mm/ 1mm
Polishing	Single or Double side
Orientation	<111>±0.2°
Edge Orientation accuracy	2°(special in 1°)
Cutting	Special size and orientation are available upon request
Ra	≤1nm
Package	100 clean bag,1000 clean bag
