Product Details:
Payment & Shipping Terms:
|
| Production Name: | Substituted Gadolinium Gallium Garnet | Lattic Parameter: | A=12.497Å |
|---|---|---|---|
| Growth Method: | Czochralski | Density: | 7.09g/cm3 |
| Mohs Hardness: | 7.5 | Melting Point: | 1730℃ |
| Refractive Index: | 1.954 At 1064nm | Polish: | SSP Or DSP |
| High Light: | Epitaxial Films SGGG Wafer,SGGG Wafer Substrate,SGGG Optical Substrate |
||

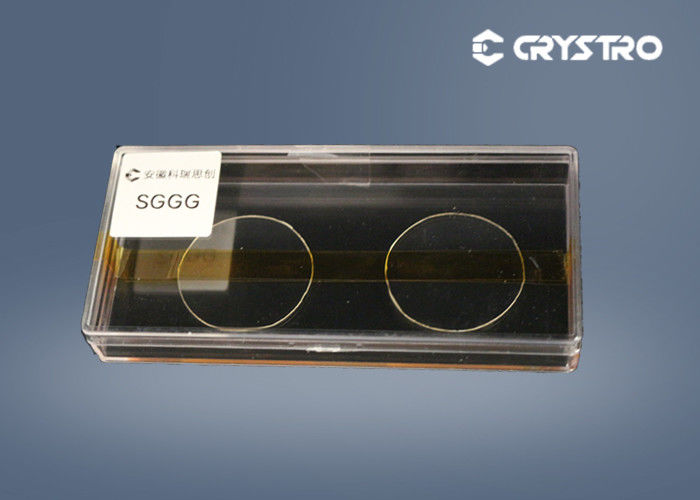

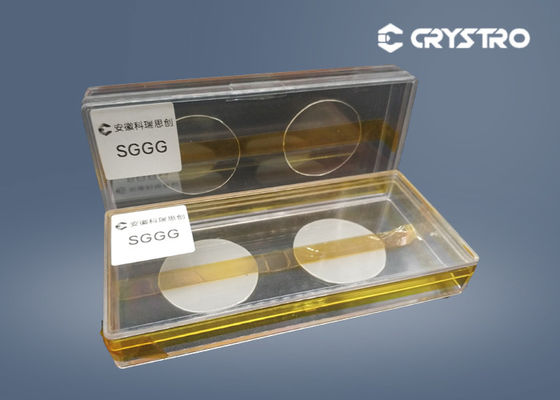

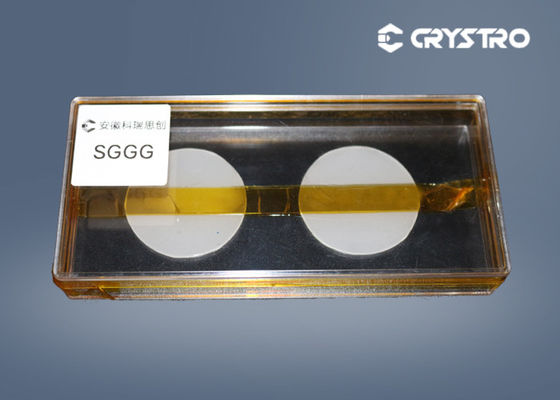

SGGG Wafer For Bismuth-Substituted Iron Garnet Epitaxial Films
(SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films. Our crystals are grown by the Czochralski method.SGGG and GGG are used as substrates for liquid epitaxy. Special sizes and shapes are available at your request.
| Name | Substituted GGG |
| Crystal Structure | Cubic |
| Lattice Parameter | a=12.497Å |
| Growth Method | Czochralski |
| Density | 7.09g/cm3 |
| Mohs Hardness | 7.5 |
| Melting Point | 1730℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO Offers:
| Size | MAX Dia 4 inches |
| Thickness | 0.5mm/ 1mm |
| Polishing | Single or Double side |
| Orientation | <111>±0.2° |
| Edge Orientation accuracy | 2°(special in 1°) |
| Cutting | Special size and orientation are available upon request |
| Ra | ≤1nm |
| Package |
100 clean bag,1000 clean bag
|
