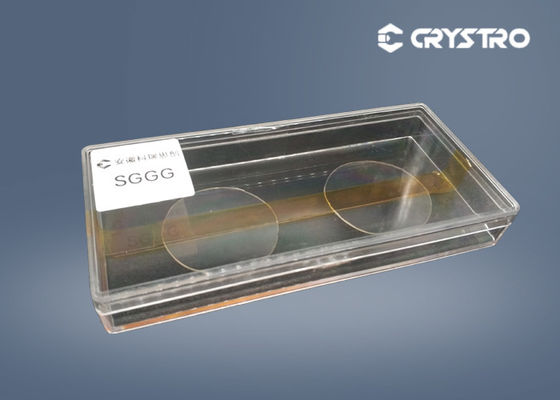

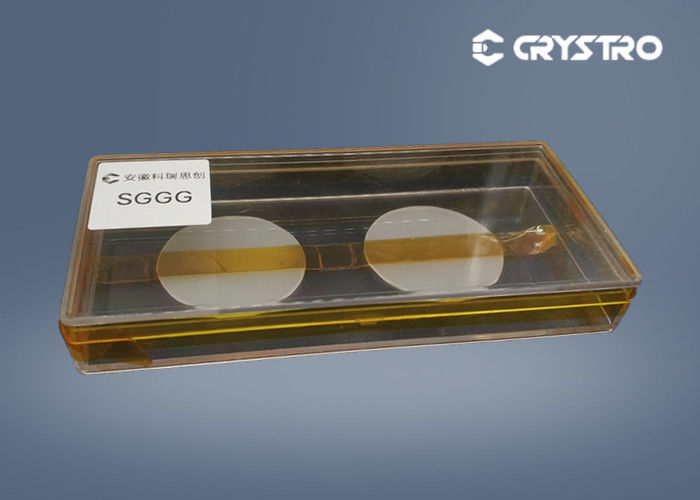

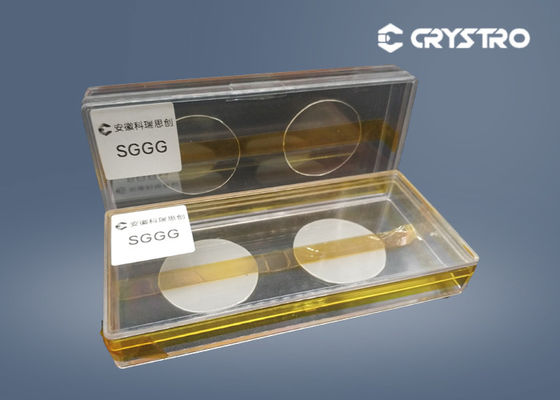

Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal

Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal
Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal

Large Image :  Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRSGGG-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Production Name: Substituted GGG Crystal Structure: Cubic
Mohs Hardness: 7.5 Melting Point: 1730℃
Lattic Parameter: A=12.497Å Growth Method: Czochralski
Density: 7.09g/cm3 Refractive Index: 1.954 At 1064nm
High Light:

Epitaxial Films SGGG Crystal

,

SGGG Optical Substrate

,

Substituted GGG Optical Substrate








Substituted GGG (SGGG) Crystals For Epitaxial Films substrates





Introduction :



SGGG and GGG are used as substrates for liquid epitaxy. (SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films. Our crystals are grown by the Czochralski method. It has good physical and mechanical properties and chemical stability.



Main Properties:



Name Substituted GGG
Crystal Structure Cubic
Lattice Parameter a=12.497Å
Growth Method Czochralski
Density 7.09g/cm3
Mohs Hardness 7.5
Melting Point 1730℃
Refractive Index 1.954 at 1064nm























CRYSTRO Offers:



SIze MAX Dia 4 inches
Thickness 0.5mm/ 1mm
Polishing Single or Double side
Orientation <111>±0.2°
Edge Orientation accuracy 2°(special in 1°)
Cutting Special size and orientation are available upon request
Ra ≤1nm
Package
100 clean bag,1000 clean bag







Epitaxial Films Substituted GGG Optical Substrate SGGG Crystal 0
