Product Details:
Payment & Shipping Terms:
|
| Production Name: | Substituted Gadolinium Gallium Garnet | Chemical Formula: | SGGG |
|---|---|---|---|
| Lattic Parameter: | A=12.497Å | Growth Method: | Czochralski |
| Density: | 7.09g/cm3 | Mohs Hardness: | 7.5 |
| Melting Point: | 1730℃ | Refractive Index: | 1.954 At 1064nm |
| High Light: | GGG Crystal Boubles,Optical SGGG Crystal,Optical Gadolinium Gallium Garnet SGGG Crystal |
||

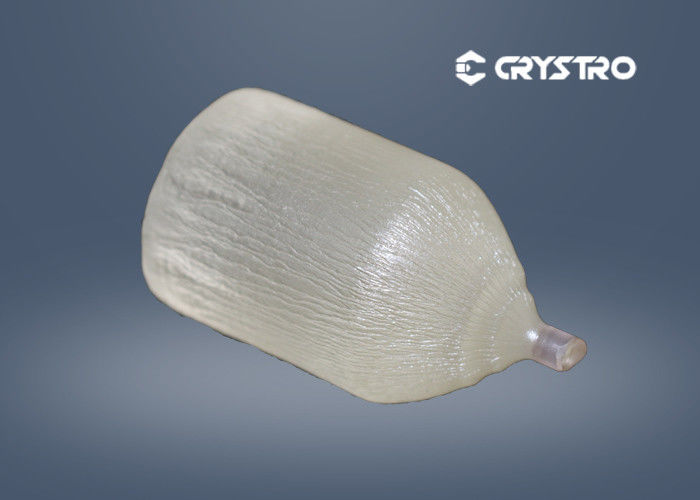

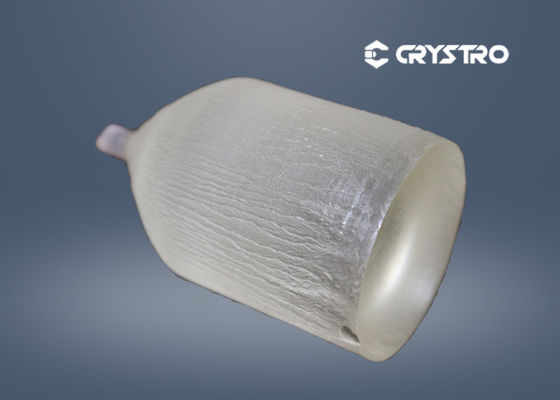

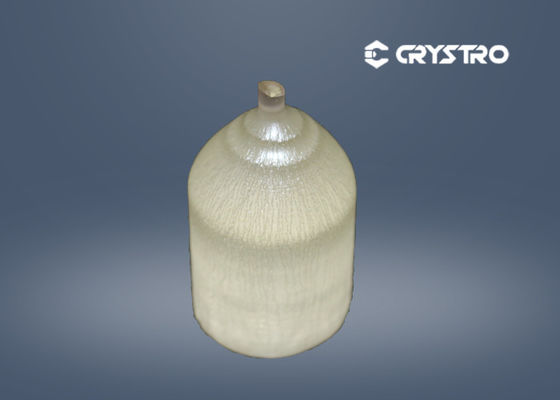

Substituted gadolinium gallium garnet (SGGG) crystals with calcium, magnesium, and zirconium as substituting ions have been used as substrates for bismuth-substituted iron garnet epitaxial films.GGG, SGGG, and NGG Garnets are used as substrates for liquid epitaxy.
| Name | Substituted GGG |
| Crystal Structure | Cubic |
| Lattic Parameter | a=12.497Å |
| Growth Method | Czochralski |
| Density | 7.09g/cm3 |
| Mohs Hardness | 7.5 |
| Melting Point | 1730℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO Offers:
| SIze | MAX Dia 4 inches |
| Thickness | 0.5mm/ 1mm |
| Polishing | Single or Double side |
| Orientation | <111>±0.2° |
| Edge Orientation accuracy | 2°(special in 1°) |
| Cutting | Special size and orientation are available upon request |
| Ra | ≤1nm |
| Package |
100 clean bag,1000 exactly clean bag
|
