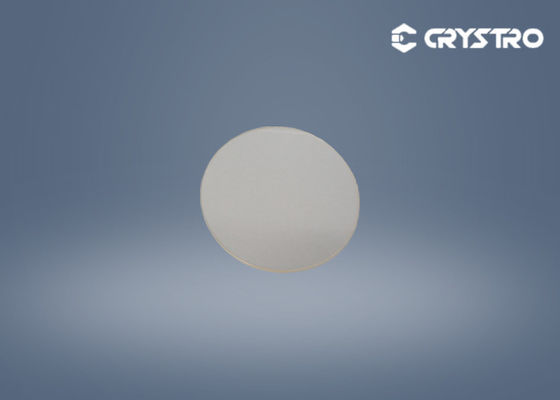

Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing

Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing
Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing

Large Image :  Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: 1SGGG76.2*0.5-E1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Transparent clean box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Substituted GGG Dimensions: Dia 76.2*0.5mm
Polish: Single Side Lattic Parameter: A=12.497Å
Growth Method: Czochralski Density: 7.09g/cm3
Mohs Hardness: 7.5 Melting Point: 1730℃
High Light:

SGGG optical substrate

,

Substituted GGG optical substrate

,

Single side polishing substituted ggg










Dia 76.2*0.5mm Substituted GGG SGGG Crystal Optical Substrate





Introduction :



Substituted Gadolinium Gallium Garnet (SGGG) and Gadolinium Gallium Garnet (GGG) are used as substrates for liquid epitaxy.

Crystro can offer substrate with well lattice parameters and surface quality in large diameters up to 4’’.









Main Properties:



Name Substituted GGG
Crystal Structure Cubic
Lattice Parameter a=12.497Å
Growth Method Czochralski
Density 7.09g/cm3
Mohs Hardness 7.5
Melting Point 1730℃
Refractive Index 1.954 at 1064nm





















CRYSTRO Offers:

Size MAX Dia 4 inches
Thickness 0.5mm/ 1mm
Polishing Single or Double side
Orientation <111>±0.2°
Edge Orientation accuracy 2°(special in 1°)
Cutting Special size and orientation are available upon request
Ra ≤1nm

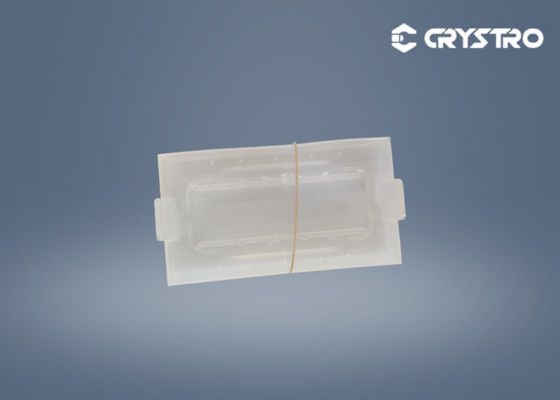

Package
100 clean bag,1000 clean bag



Pictures:

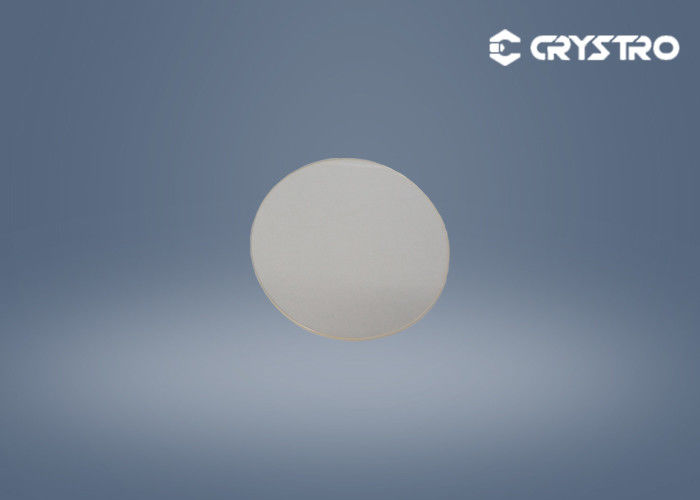

Dia76.2x0.5mm Subsitiuted GGG SGGG Crystal Optical Substrate Single Side Polishing 0
