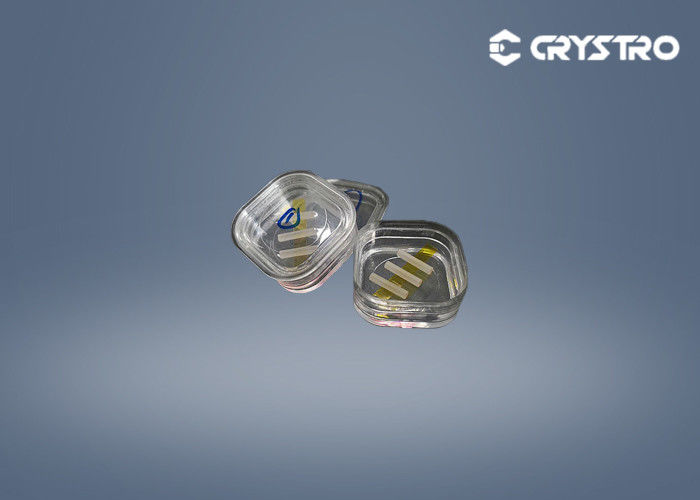

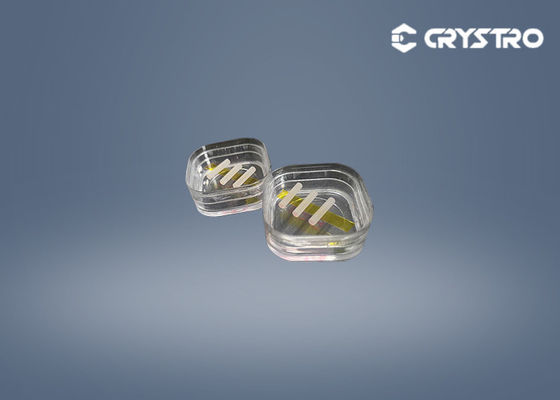

| Chemical Formula: | Tb₃Ga₅O₁₂ | Dimension: | D2.8*14 |
|---|---|---|---|
| Growth Method: | Cz Method | Lattic Parameter: | A=12.355Å |
| Crystal Structure: | Cubic | Density: | 7.13g/cm3 |
| Mohs Hardness: | 8.0 | Melting Point: | 1725℃ |
| High Light: | Magneto Optical tgg crystal,2.8mm tgg crystal,Cubic crystal TGG rod |
||
Terbium Gallium Garnet (TGG) is a kind of synthetic garnet, a magneto-optical crystal with a high level of thermal conductivity for Faraday rotators and isolators. It can be used in optical isolators for laser systems, in optical circulators for fiber optic systems, in optical modulators, and in current and magnetic field sensors.
In recent years, the growth of large-size and high-quality TGG crystals has always been a hot research topic in the field of crystal materials. With the unremitting efforts of the professional R&D team, Crystro has successfully grown TGG crystals with a diameter of 100mm in June 2020.
| Chemical Formula | TB3Ga5O12 |
| Lattice Parameter | a=12.355Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
We can offer to customize TGG crystal sizes upon your request.
| Orientation | [111] within ±15 arc min |
| Wavefront Distortion | <1/8 wave |
| Extinction Ratio | >35dB |
| Diameter Tolerance | +0.00mm/-0.05mm |
| Length Tolerance | +0.2mm/-0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 5 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| AR Coating | <0.2% |
| Large Dimensions of Crystals | Maxφ101.6mm (4 inches) |
