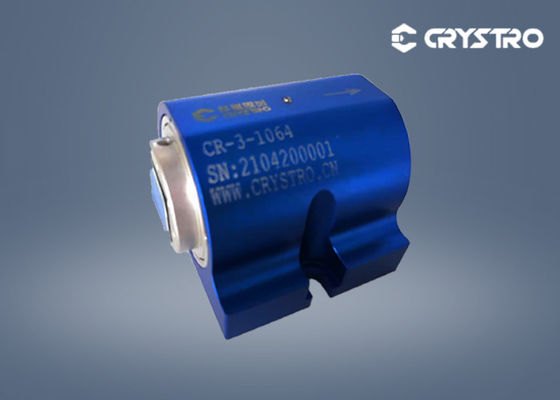

3mm Optomechanical Polarization Faraday Rotator Non Reciprocity

3mm Optomechanical  Polarization  Faraday Rotator Non Reciprocity
3mm Optomechanical  Polarization  Faraday Rotator Non Reciprocity 3mm Optomechanical  Polarization  Faraday Rotator Non Reciprocity

Large Image :  3mm Optomechanical Polarization Faraday Rotator Non Reciprocity

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CR-3-1064-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Name: Faraday Rotator Clear Aperture: 3 Mm
Center Wavelength: 1064nm Crystal Material: TGG Crystal
Damage Threshold: 10J/cm2@10ns Peak Isolation: ≥35 DB
Peak Transmission: ≥95% Storage Temperature: -20 -70℃
Tunable Temperature: 10-30 ℃
High Light:

3mm Faraday Rotator

,

Optomechanical Faraday Rotator

,

Optomechanical polarization Rotator

Center Wavelength 1064nm Clear Aperture 3mm Faraday Rotator





1. Faraday Rotator Introduction:

The Faraday rotator uses the non-reciprocity of magneto-optical materials, that is, it can rotate the polarization planes of forwarding incident light and reverse incident light of the same wavelength to the same direction by the same angle, regardless of the direction of beam propagation. If a Faraday rotator that rotates the polarization plane of the incident beam by 45 degrees is placed between a pair of polarizers placed orthogonally to each other at 45 degrees to form an optical isolator, it only allows the forward beam to pass through the system. The light beam transmitted in the reverse direction is blocked.





2. Main Features of Rotators :

  • High Isolation
  • Low insertion loss
  • Multiple through-light apertures
  • Double escape Windows at both ends
  • Multiple wavelengths are available
  • Certain wavelength bandwidth applicability
  • The output polarization state is controllable



3. Applications of Rotators:

  • Faraday Isolator
  • Laser sensing system
  • Ultrafast laser system
  • OCT system



4.Specifications :



Faraday Isolator and Rotator
Material TGG or TSAG
Center Wavelength 405-980nm 1064nm
Operating Wavelength Range ≥±10nm ≥±15nm
Peak Transmission >90% >92%
Peak Isolation >35dB >35dB
M2 Degradation <10% <10%
Clear Aperture 3,4mm or other 2,3,4,5,8,10,12 or others
Optical Power(Average) 10,30,50W or customized 10,30,50,100W or customized
Damage Threshold 3.5J/cm2@10ns 10J/cm2@10ns
Storage Temperature Range 20-70℃ -20-70℃
Tunable Temperature Range 10-30℃ 10-30℃

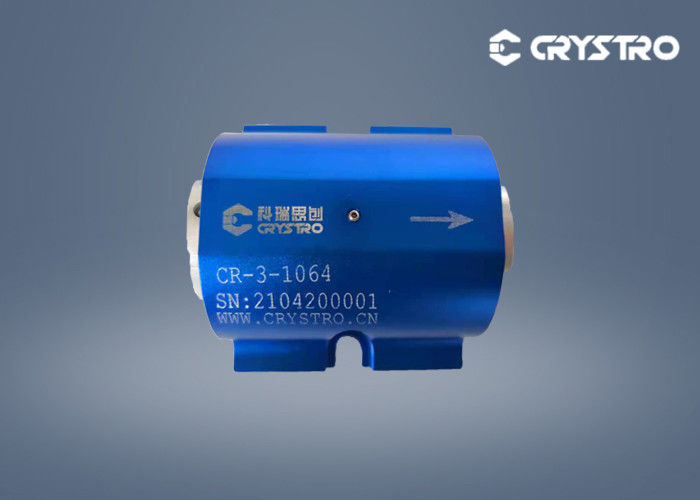

5.Product Picture:



3mm Optomechanical  Polarization  Faraday Rotator Non Reciprocity 0
