TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss

TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss
TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss

Large Image :  TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: SGS
Model Number: CRROT-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Faraday Rotator Clear Aperture: 3 Mm
Center Wavelength: 850nm Crystal Material: TGG Crystal
Peak Isolation: ≥35 DB Peak Transmission: ≥93%
Storage Temperature: -20 -70℃ Tunable Temperature: 10-30 ℃
High Light:

Faraday polarization splitter rotator

,

850nm polarization splitter rotator

,

TGG polarisation rotator



1.Faraday Rotator Introduction:



Faraday rotator is a polarization rotator based on the Faraday effect, a magneto-optic effect involving transmission of light through a material when a longitudinal static magnetic field is present.

It provides non-reciprocal rotation while maintaining linear polarization, The plane of polarization will be rotated 45°when light transmits through the Faraday rotator in the forward direction and rotated an additional 45° in the same relative direction with respect to a magnetic field when light travels backward from the reverse direction. It will generate a total rotation of 90°and reject the light coming from the reverse direction.





2. Main Features of Rotators :

  • High Isolation
  • Low insertion loss
  • Multiple through-light apertures
  • Double escape Windows at both ends
  • Multiple wavelengths are available
  • Certain wavelength bandwidth applicability
  • The output polarization state is controllable



3. Applications of Rotators:

  • Faraday Isolator
  • Laser sensing system
  • Ultrafast laser system
  • OCT system





4.Specifications :



Faraday Isolator and Rotator
Material TGG or TSAG
Center Wavelength 405-980nm 1064nm
Operating Wavelength Range ≥±10nm ≥±15nm
Peak Transmission >90% >92%
Peak Isolation >35dB >35dB
M2 Degradation <10% <10%
Clear Aperture 3,4mm or other 2,3,4,5,8,10,12 or others
Optical Power(Average) 10,30,50W or customized 10,30,50,100W or customized
Damage Threshold 3.5J/cm2@10ns 10J/cm2@10ns
Storage Temperature Range 20-70℃ -20-70℃
Tunable Temperature Range 10-30℃ 10-30℃

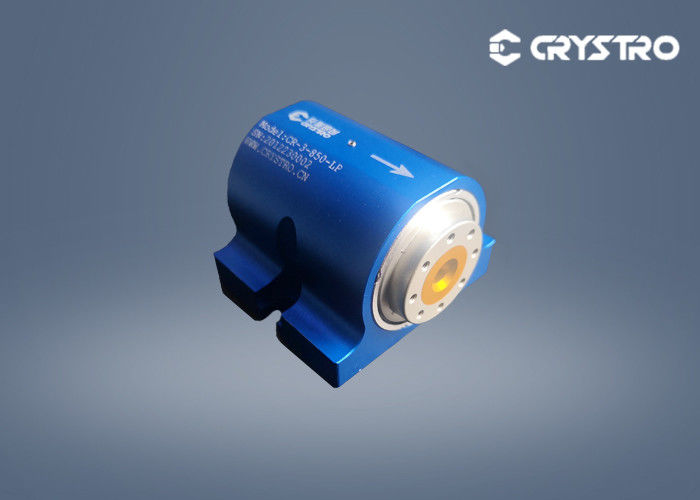

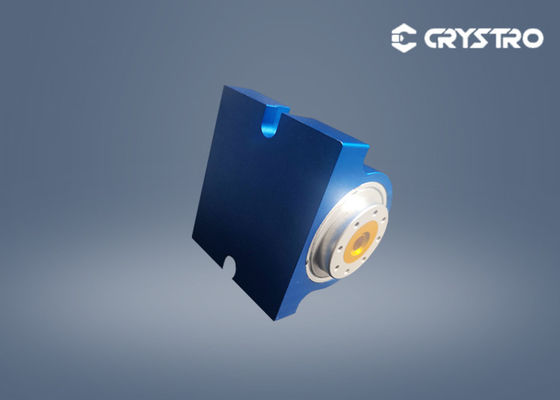

5.Product Picture:



TGG 850nm Faraday Polarization Splitter Rotator Low Insertion Loss 0
