Wavelength 850nm Clear Aperture 3mm Fpolarization Faraday Rotator

Center Wavelength 850nm Clear Aperture 3mm Faraday Rotator

1.Faraday Rotator Introduction:

Faraday rotator is a polarization rotator based on the Faraday effect, a magneto-optic effect involving transmission of light through a material when a longitudinal static magnetic field is present.

It provides non-reciprocal rotation while maintaining linear polarization, The plane of polarization will be rotated 45°when light transmits through the Faraday rotator in the forward direction and rotated an additional 45° in the same relative direction with respect to a magnetic field when light travels backward from the reverse direction. It will generate a total rotation of 90°and reject the light coming from the reverse direction.

2. Main Features of Rotators :

• High Isolation
• Low insertion loss
• Multiple through-light apertures
• Double escape Windows at both ends
• Multiple wavelengths are available
• Certain wavelength bandwidth applicability
• The output polarization state is controllable

3. Applications of Rotators:

• Faraday Isolator
• Laser sensing system
• Ultrafast laser system
• OCT system

4.Specifications :

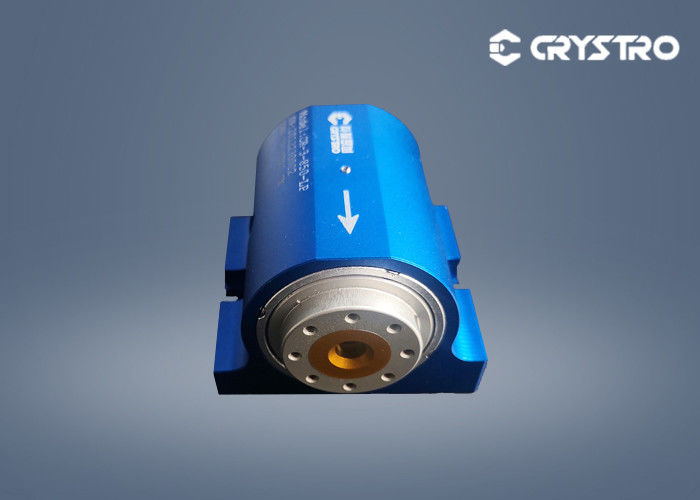

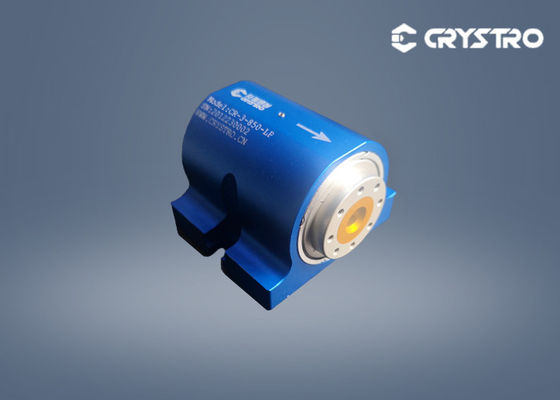

5.Product Picture:
