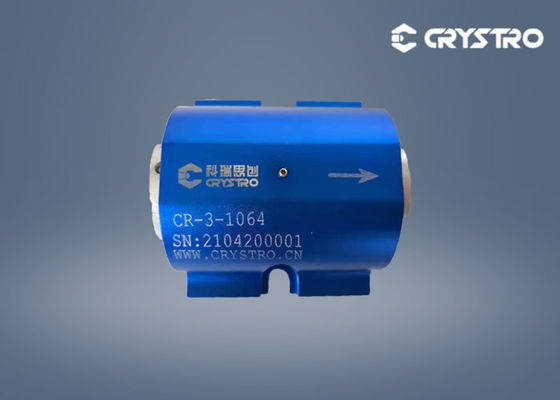

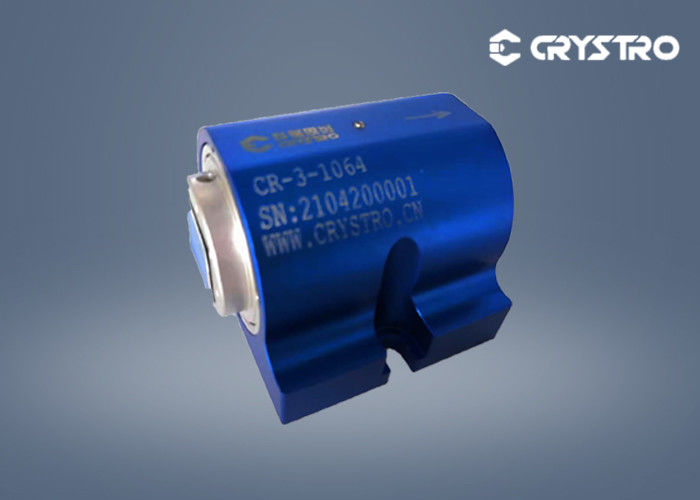

High Power Clear Aperture 3mm 1064nm Faraday Rotatror

High Power Clear Aperture 3mm 1064nm Faraday Rotatror
High Power Clear Aperture 3mm 1064nm Faraday Rotatror High Power Clear Aperture 3mm 1064nm Faraday Rotatror

Large Image :  High Power Clear Aperture 3mm 1064nm Faraday Rotatror

Product Details:
Place of Origin: China
Brand Name: Crystro
Certification: ISO9001
Model Number: CRROT-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per week
Detailed Product Description
Product Name: Faraday Rotator Material: TGG
Clear Aperture: 3mm Wavelength: 1064nm
Damage Threshold: 10J/cm²@10nm Peak Transmission: >92%
Operating Wavelength Range: ≥±15nm Optical Power(Average): 10,30,50,100W Or Customized
High Light:

3mm Fadaday Rotatror

,

1064nm Fadaday Rotatror

,

1064nm High Power Fadaday Rotatror




Crystro Magneto-Optic Clear Aperture 3mm Wavelength 1064nm Faraday Rotator





Introduction





Faraday Rotator makes use of the non-reciprocity of magneto-optic materials, which can rotate the polarization surface of the forward and reverse incident light of the wavelength in the same direction at the same angle, independent of the direction of beam propagation. If a Faraday rotator rotating 45 degrees of the polarization surface of an incident beam is placed between a pair of polarizers placed in a 45 degrees orthogonal position to each other to form a light isolator, it only allows the forward transmitted beam to pass through the system and blocks the reverse transmitted beam.







Specifications



Faraday Isolator and Rotator
Material TGG or TSAG
Center Wavelength 405-980nm 1064nm
Operating Wavelength Range ≥±10nm ≥±15nm
Peak Transmission >90% >92%
Peak Isolation >35dB >35dB
M2 Degradation <10% <10%
Clear Aperture 3,4mm or other 2,3,4,5,8,10,12 or others
Optical Power(Average) 10,30,50W or customized 10,30,50,100W or customized
Damage Threshold 3.5J/cm2@10ns 10J/cm2@10ns
Storage Temperature Range 20-70℃ -20-70℃
Tunable Temperature Range 10-30℃ 10-30℃



Main functional features

  • High isolation
  • Low insertion loss
  • Multiple through-light apertures
  • Double escape Windows at both ends
  • Multiple wavelengths are available
  • Certain wavelength bandwidth applicability
  • The output polarization state is controllable



Application

  • Seed light amplifying laser
  • Mode-locked laser
  • semiconductor laser
  • Optical measuring equipment
  • Optical parametric oscillator









Product details



High Power Clear Aperture 3mm 1064nm Faraday Rotatror 0
