Product Details:
Payment & Shipping Terms:
|
| Product Name: | Diffusion Bonded Crystal | Material: | YV04+Nd:YV04 |
|---|---|---|---|
| Orientation: | ±0.5° | Wavefront Distortion: | λ/8 @633nm |
| Flatness: | λ/10 @633nm | Surface Quality: | 10/5 |
| Clear Aperture: | ＞90% | Coating: | Upon Customer Requirements |
| High Light: | Nd YV04 Laser Crystal,nd doped yttrium vanadate Crystal,Nd YV04 nd doped yttrium vanadate |
||

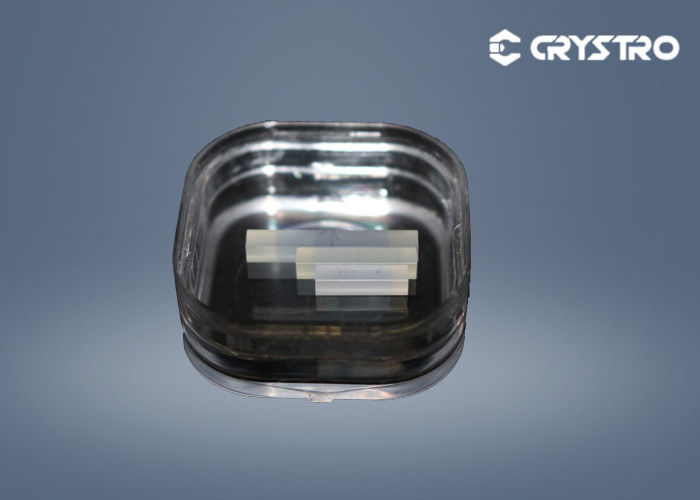

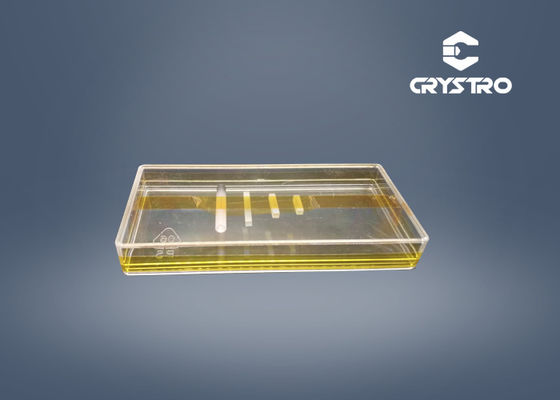

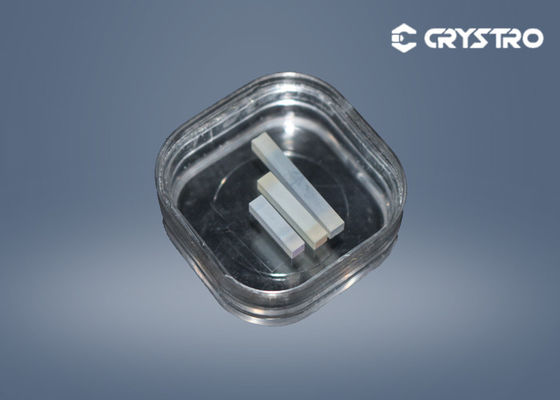

Bonded crystal is a product in which a laser crystal and one or two pure non-doped materials are firmly combined through bonding technology. Bonded crystals can effectively reduce the temperature of laser crystals and reduce the impact of thermal lens effects caused by end-face deformation.
Crystal bonding is a kind of composite technology of laser crystal. Because most optical crystals have a high melting point, it is usually necessary to promote the diffusion and fusion of molecules on the surface of two crystals through precise optical processing by high-temperature heat treatment, and finally form a stable chemical bond to achieve the real integration. Therefore, crystal bonding technology is also called diffusion bonding technology (or thermal bonding technology).
| Material | Doping Concentration | Aperture (mm) | Length (mm) |
| Nd: YAG+Cr4+:YAG | 0.1-3%/0.6-7.0 | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG+YAG | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YAG+Nd: YAG+Cr4+:YAG | 0.1-3%/0.6-7.0 | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4 | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4+YVO4 | 0.1-3% | 2×2-20×20 | 0.5-200 |
| YVO4+Nd: YVO4+YVO4 | 0.1-3% | Dia2-15 | 0.5-200 |
| Wavefront Distortion | λ/8 wave at 633nm |
| Diameter Tolerance | ±0.1mm |
| Orientation | ±0.5° |
| Chamfer | 0.10mm@45º |
| Flatness | λ/10 wave at 633nm |
| Parallelism | < 10 " |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Aperture | >90% |
